Universal Optical Trial Frame — Fully Adjustable 48-80mm PD, 360° Rotation, 74g Ultralight, Optometry Refraction Standard
Universal Optical Trial Frame — Fully Adjustable 48-80mm PD, 360° Rotation, 74g Ultralight, Optometry Refraction Standard
Couldn't load pickup availability

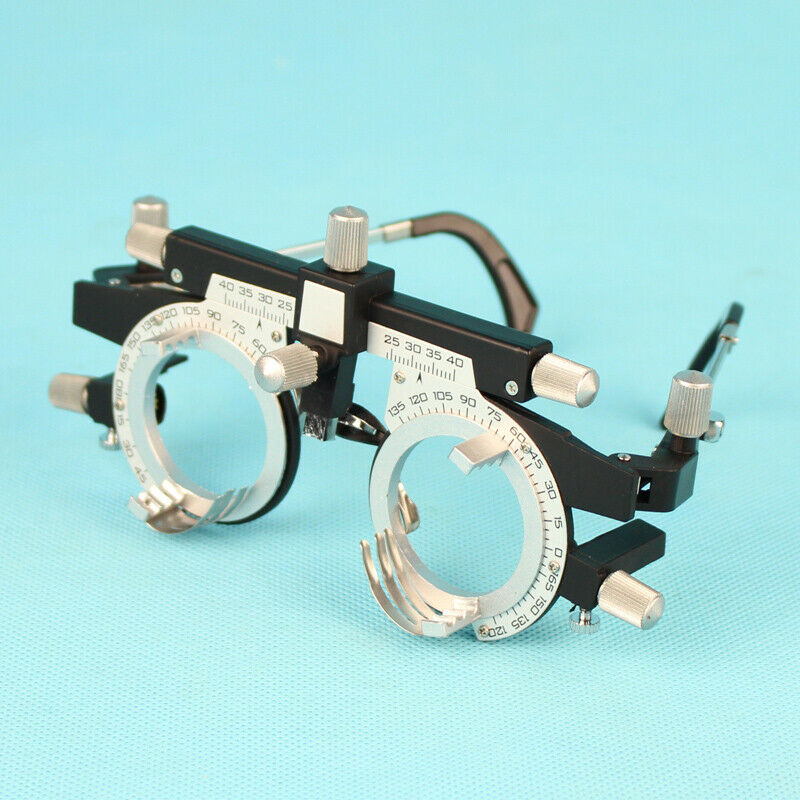

Universal fully-adjustable optical trial frame — the primary refraction-lane instrument for every optometry practice, ophthalmology clinic, and low-vision service. Adjustable PD 48-80mm (accommodates children through adults with wide IPD), temple length 98-135mm, nose bridge height 0-14mm, adjustable nose angle 0-30° for individual facial anatomy. Full 360° lens rotation with independent axis calibration on each cell (left −120° to 0° to 135°, right +45° to 180° to 60°) for precise cylinder axis positioning. Ultralight 74g total weight — critical for patient comfort during 15-20 min refractions. $249.99 direct — versus $500-$900 for Oculus UB4 / Topcon TT-01 / Reichert 12871 / Marco M-25 branded universal trial frames.
Applications
- Primary refraction lane — subjective refraction in every optometry / ophthalmology practice (this IS the primary frame)
- Pediatric refraction — narrow PD adjustment (min 48mm) fits school-age children
- Low vision refraction — accommodates decentered lens positioning + trial magnifiers
- Post-cataract refraction — adjustable frame accommodates surgical hardware + patient anatomy variations
- Contact lens over-refraction — refract over patient's contacts to fine-tune Rx
- Prism refraction (strabismus, diplopia) — hold prism trial lenses in cell for alignment testing
- Community + rural eye clinics — primary refraction tool
- Screening camps — one universal frame + several fixed-PD backup frames (SciMed 64mm $249)
Specifications
| PD range | 24-40mm each side · 48-80mm total (both eyes) — pediatric through wide-IPD adult |
|---|---|
| Temple length | 98-135mm adjustable (short to long head) |
| Nose bridge height | 0-14mm adjustable (fits low to high nasal bridge anatomy) |
| Nose angle | 0°-30° adjustable (accommodates facial anatomy variation) |
| Axis calibration | Left cell: −120° to 0° to 135° · Right cell: +45° to 180° to 60° (independent for each eye) |
| Lens rotation | Full 360° per cell |
| Weight | 74g total (ultralight — no patient fatigue during long refractions) |
| Cell compatibility | Universal 38mm cell diameter (all standard optometry trial lens sets) |
| Warranty | 1-year against manufacturing defects |
Comparison to premium OEMs
| Feature | SciMed Universal | Oculus UB4 | Topcon TT-01 | Marco M-25 |
|---|---|---|---|---|
| PD range | 48-80mm | 48-80mm | 50-80mm | 48-80mm |
| Temple length | 98-135mm | 98-140mm | 100-135mm | 100-135mm |
| Nose bridge adj | 0-14mm | Yes | Yes | Yes |
| Weight | 74g | 62g | 68g | 75g |
| Axis calibration | Independent L/R | Independent L/R | Independent L/R | Independent L/R |
| Cell diameter | 38mm universal | 38mm | 38mm | 38mm |
| Price | $249.99 | $650-$750 | $550-$650 | $500-$600 |
Best for
- Primary refraction lane in optometry + ophthalmology practices
- Pediatric refraction lanes (narrow PD critical)
- Optometry / ophthalmology residency training (primary teaching frame)
- Community + rural eye clinics
- International eye NGOs — Aravind, LV Prasad, Fred Hollows, Sightsavers, ORBIS
- Mobile refraction service providers
- International DDP procurement — global refraction lane setups
Buying for a practice, residency, or eye NGO?
- Volume pricing on 3+ frames (equip multi-lane practice or residency cohort)
- Net-30 invoicing for verified academic + NGO + practice accounts
- SAM.gov / VA compliant for federal + academic ophthalmology
- Bundle with SciMed fixed-64mm frame ($249) + trial lens sets — refraction-lane package deals
- International DDP — global eye-care procurement
FAQ
Universal vs fixed-PD frame — which do I need?
Both. Universal (this frame) = primary refraction-lane tool, adjustable to any patient anatomy from child to adult. Fixed-PD (SciMed 64mm, $249) = backup / spare / camp frame, faster to seat on adult patients when high throughput matters. A well-equipped practice has both.
Why the specific axis calibration ranges?
Axis scales are marked from the perspective of each eye (patient's convention, not TABO). Left cell (patient's left = provider's right): reads −120° through 0° (horizontal) to +135°. Right cell mirrors this. Standard optometry convention — no re-training needed for staff familiar with any commercial trial frame.
Trial lens set compatibility?
Universal 38mm cell — accepts any standard optometry trial lens set (SciMed sets, Marco, Reichert, Topcon, Oculus, generic 232-piece or 266-piece sets). No proprietary lock-in.
Compared to premium Oculus / Topcon — what's the trade-off?
Oculus / Topcon are precision German/Japanese optical instruments with tighter machining tolerances, longer service life, and industry-leading axis calibration precision. This SciMed frame delivers functional refraction-lane accuracy at 30-40% of premium OEM pricing. For a high-volume specialty practice, invest in Oculus. For general optometry, residencies, community clinics, NGO programs, and satellite offices, SciMed hits the value sweet spot.
