Slit Lamp with Motorized Table and Indirect Ophthalmoscope — Complete Ophthalmology Bundle
Slit Lamp with Motorized Table and Indirect Ophthalmoscope — Complete Ophthalmology Bundle
Couldn't load pickup availability
The complete new-exam-lane build for an optometry, OB-GYN, or ophthalmology practice — digital slit lamp + motorized adjustable table + wireless indirect ophthalmoscope, all on a single purchase order at $4,999.99. Designed for practices expanding to a second exam lane or building a new one from scratch. Everything you need to run a complete eye exam workflow in one bundle.

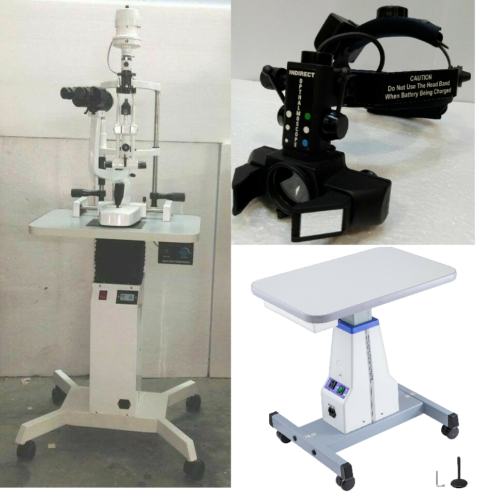

What's included in this bundle
- 2-Step Haag-Streit-type Slit Lamp Microscope — wide-field 15× eyepieces, 10×16× magnification, 0–180° slit rotation
- Motorized Adjustable Exam Table — sealed motor system, foot-switch elevation, 4-castor base for smooth movement

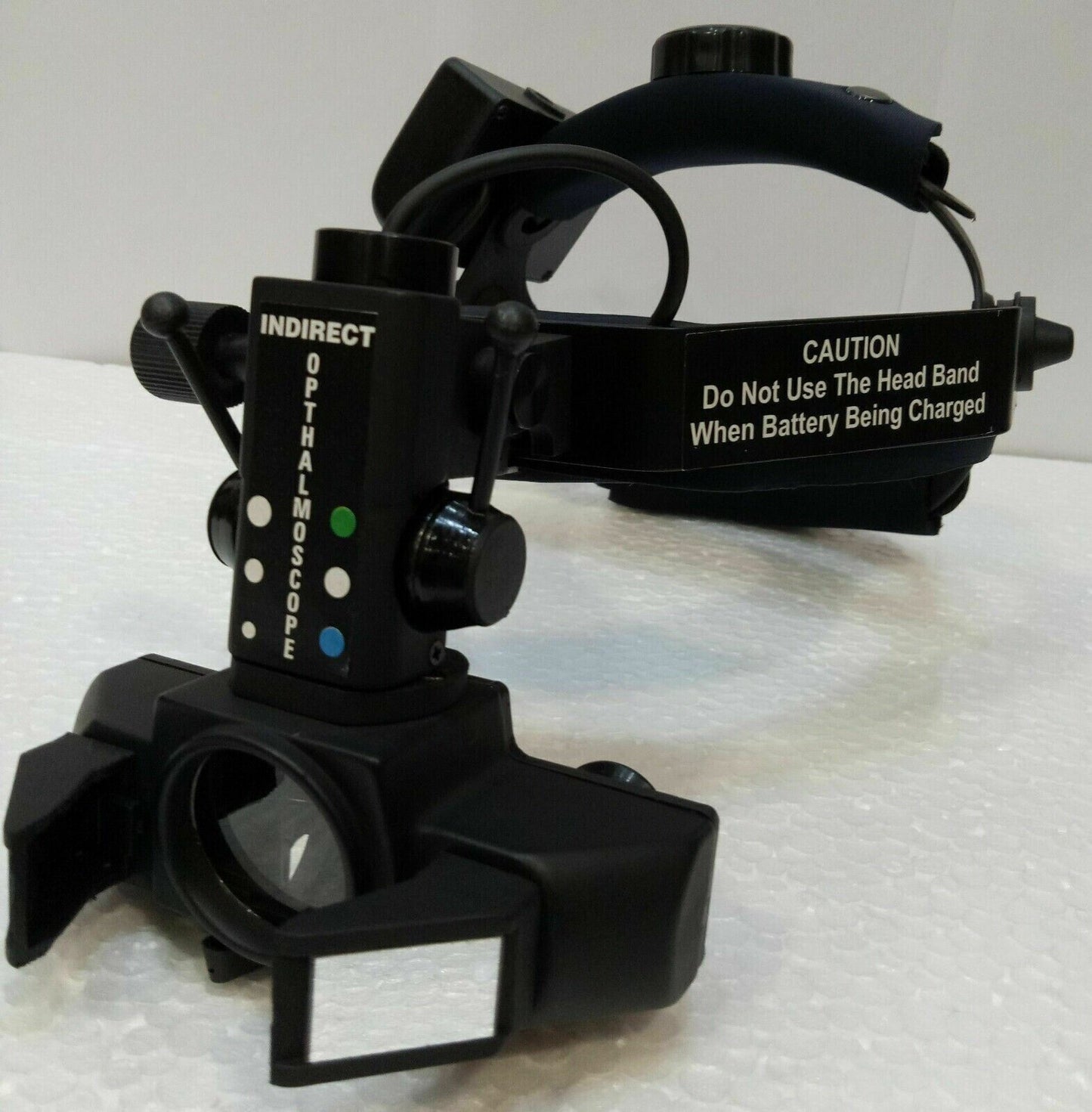

- Wireless Binocular Indirect Ophthalmoscope — for wide-field retinal exam (component included with bundle)
- Lamp module + filter set — yellow, red-free, neutral density, cobalt blue, diffuser
- Chin rest + forehead rest with 55mm adjustment range
- Power supply, foot pedals, mounting hardware, user manuals

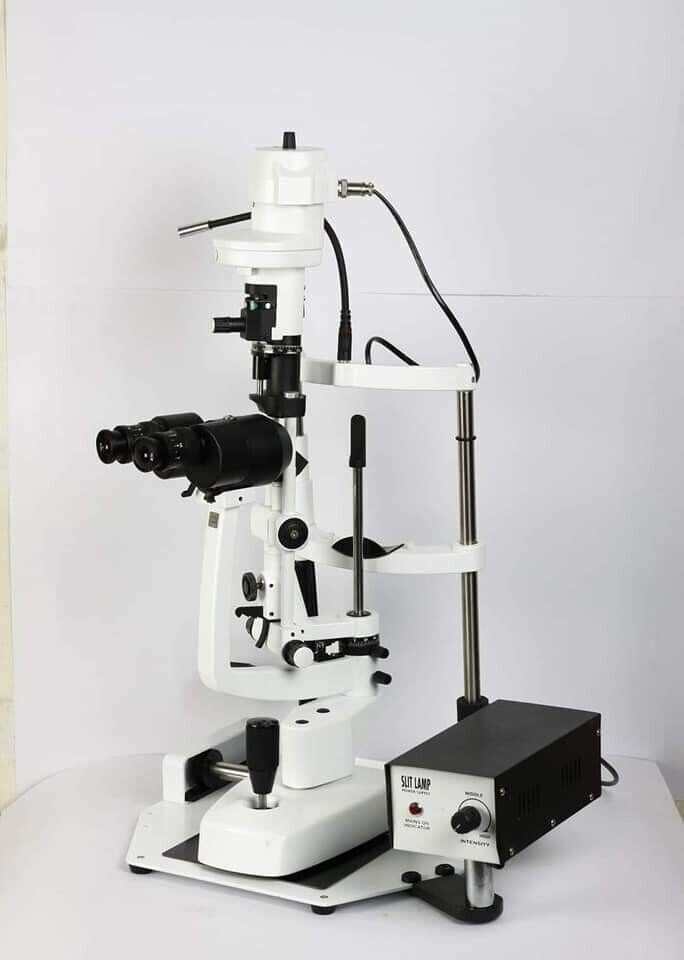

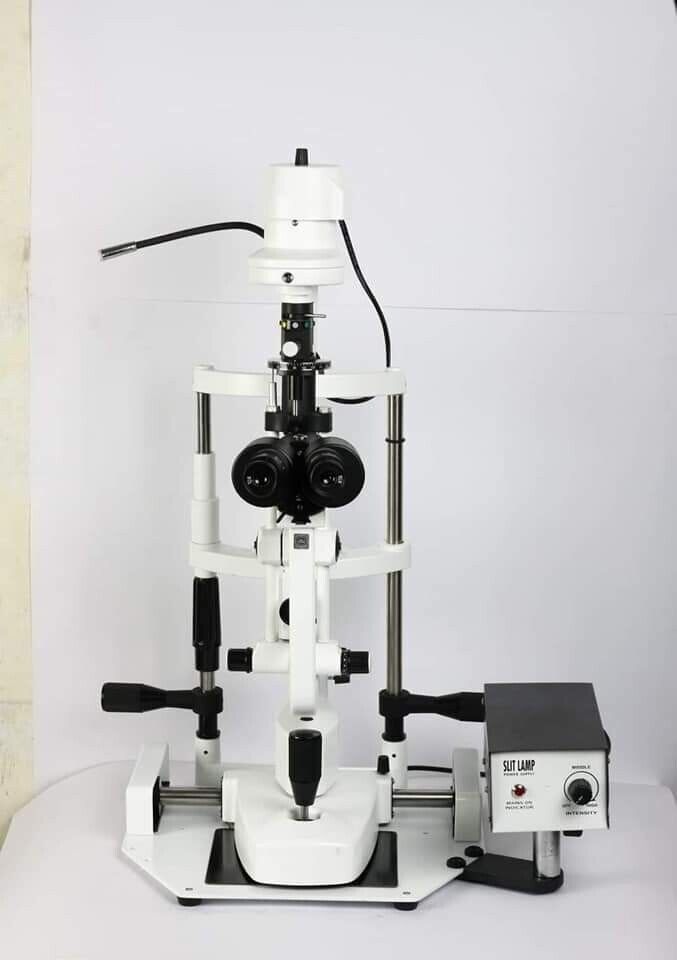

Slit Lamp specifications
| Microscope type | 2-Step Haag-Streit-type slit lamp microscope |
|---|---|
| Magnification | 2 positions (lever switch): 10× and 16× |
| Eyepieces | 10× or 15× (wide-field, with reticle option) |
| Total magnification | 10×, 16× (with 10× eyepieces) or 15×, 24× (with 15× eyepieces) |
| Real field of view | 18 mm / 11 mm (10×) or 14 mm / 9 mm (15×) |
| Pupillary distance (PD) | 52–90 mm adjustable |
| Diopter adjustment | ±8 D |
| Working distance | 100 mm |
| Slit width | 0–12 mm (continuously variable) |
| Slit length | 0–12 mm (continuously variable) |
| Slit apertures | 0.2, 1, 3, 4, 6, 10, 14 mm |
| Slit angles | 0°–180° |
| Filter set | Yellow, red-free, neutral density, cobalt blue, diffuser |
| Input voltage | 110V / 220V AC, 50/60 Hz |
| Lamp output | 12V, 50W |
| Power consumption | 45 W max |
Movement range
| Longitudinal in/out | 99 mm |
|---|---|
| Lateral (left/right) | 118 mm |
| Vertical (up/down) | 30 mm |
| Chin rest range | 55 mm |
| Slit lamp dimensions | 530 mm (L) × 380 mm (W) × 780 mm (H) |
| Slit lamp packed weight | 20 kg |
Motorized Power Table specifications
- Sealed motorized system for smooth, quiet, reliable up-down movement
- Foot-switch positioned for ease of elevation during patient exam
- Designed for any ophthalmic instrument — universal mounting
- Strong foundation base with four castors — smooth, safe, stable movement when reconfiguring the room
- 110V / 220V compatible
Best for
- New optometry practices building their first exam lane
- OB-GYN clinics adding retinal screening services for diabetic / gestational hypertension patients
- Ophthalmology practices expanding to a second exam lane
- Hospital ophthalmology departments needing complete exam-room build
- Academic medical centers setting up resident teaching exam rooms
- International ophthalmology clinics (GCC, MENA) via DDP procurement
Buying for a clinic, hospital, or academic department?
SciMed supplies the complete exam-lane bundle direct — cutting out the dealer markup that's typical on multi-instrument purchases. Procurement terms designed for clinical accounts:
- Volume / standing-order pricing on 2+ bundles (commonly OB-GYN + optometry practices opening multiple sites)
- Net-30 invoicing for verified clinics, hospitals, and academic medical centers
- Tax-exempt purchasing via W-9 + state resale certificate
- Federal / SAM.gov compliant procurement
- International DDP shipping for GCC, MENA, UK, EU, AU/NZ buyers
- Installation guidance + training documentation available on request
Compare standalone vs bundle
Bought standalone, the components would run:
- 2-Step Haag-Streit Slit Lamp: $1,799
- Universal Motorized Table: $1,999
- SciMed Wireless Indirect Ophthalmoscope: $499–$699
- Sum: $4,297–$4,497
The bundle at $4,999.99 includes additional hardware, single-PO simplicity, and clinic procurement support. For most practices, the single-PO procurement (vs 3 separate procurement cycles) is itself worth $500+ in saved administrative time.
Why buy direct from SciMed Store
- Single PO simplifies procurement — one supplier, one invoice, one shipment
- In-stock US inventory — 25 bundles physically ready, no 6-week lead times
- Same-day dispatch on orders placed before 2 PM Pacific Time
- Real US-based support — questions answered by SciMed's San Jose team
- Volume pricing on 2+ bundles
- Net-30 invoicing for verified clinical accounts
- Free US shipping on every order
- International DDP for global clinic procurement
Need a different bundle configuration (e.g., 3-step or 5-step slit lamp, premium Keeler indirect, different table)? Email sales@scimedstore.com with your specs — we can build a custom bundle quote.
Read the 2026 ophthalmoscope buyer's guide for context on indirect ophthalmoscope choice within the bundle.
Shipping: Free shipping in the US (freight on heavy bundle). Same-day dispatch before 2 PM PT. International ships worldwide via freight or DHL Express. Clinic procurement (DDP) available for GCC, MENA, UK, EU, AU/NZ. See our shipping policy.
