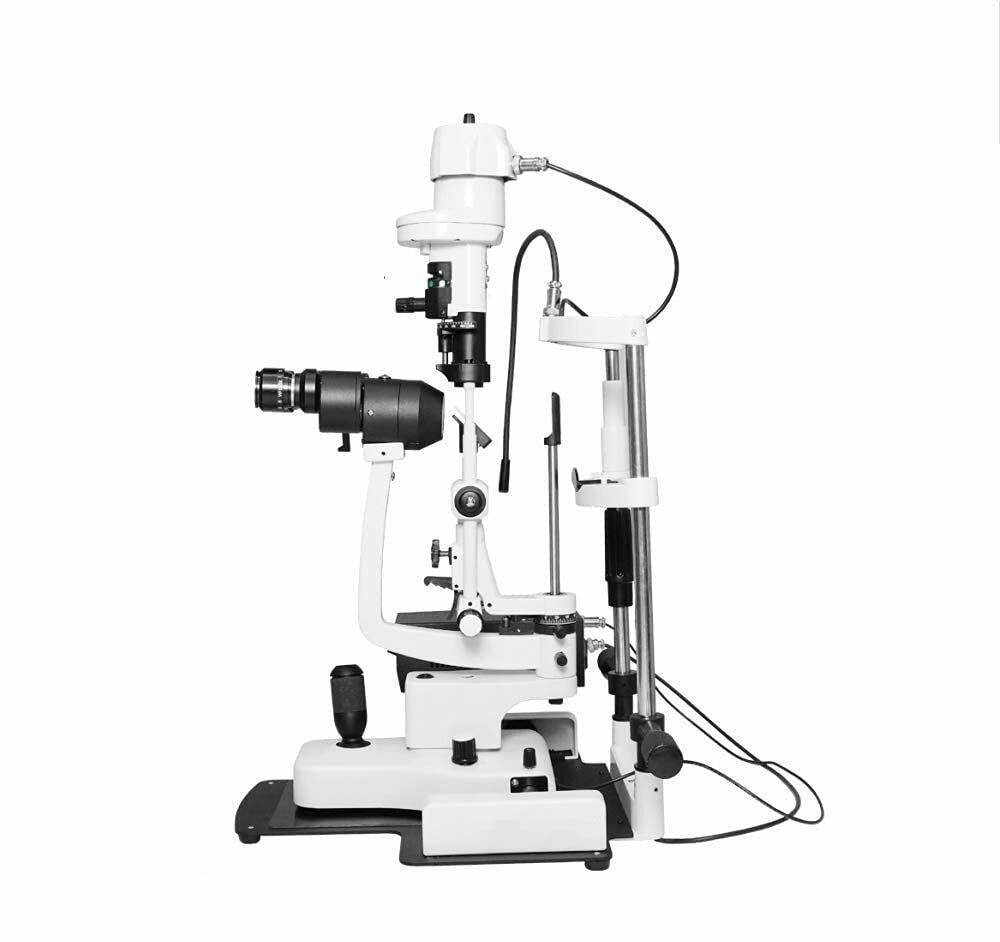

• SciMed Slit Lamp 3-Step Haag-Streit Type — 5x, 10x, 20x magnification, wide-field 15x eyepieces, 0° to 180° rotation

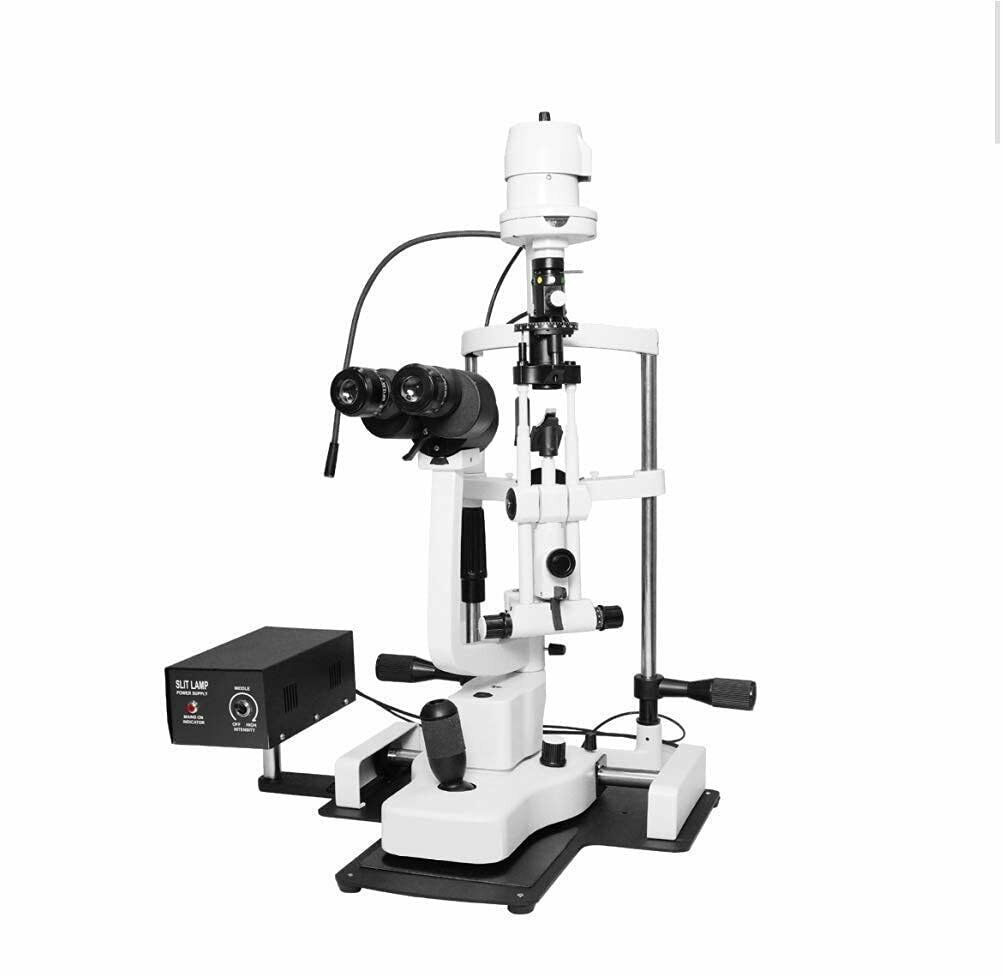

  • SciMed Slit Lamp 3-Step Haag-Streit Type — 5x, 10x, 20x magnification, wide-field 15x eyepieces, 0° to 180° rotation, side view
1 2

SciMed

Slit Lamp Biomicroscope 3-Step (Haag-Streit Type) — Galilean 5x/10x/20x, WF 15x Eyepieces

Slit Lamp Biomicroscope 3-Step (Haag-Streit Type) — Galilean 5x/10x/20x, WF 15x Eyepieces

$1,799.00 USD
$1,799.00 USD
Sale Sold out
Ophthalmologist Trusted
No Rx Required
Ships Same-Day
30-Day Returns
Taxes included. Shipping calculated at checkout.

Haag-Streit-type slit lamp biomicroscope for anterior segment ophthalmic examination — cornea, iris, anterior chamber, lens, and vitreous face assessment. Galilean 3-step magnification changer (5×, 10×, 20× objective × 15× wide-field eyepieces = 15×, 30×, 60× total magnification), 0°-180° slit rotation, 5°/10°/15°/20° illumination tilt, 6-aperture slit diaphragm (12/9/7/3/0.2mm + wedge-shape variable), Cobalt Blue / Green / Yellow / Open filters, 6V 20W Philips/Osram halogen bulb. Joystick control, ergonomic build. $1,799 direct — versus $3,500-$5,500 for Haag-Streit BM 900 / BQ 900 economy models or Zeiss SL 130.

✓ 3-Step Mag 5x/10x/20x✓ WF 15x Eyepieces✓ 15x/30x/60x Total Mag✓ 6-Aperture Slit Disc✓ 4 Filters (CB/G/Y/Open)✓ 0-180° Slit Rotation✓ 6V/20W Philips Halogen✓ Joystick Control
Where this sits in the market: Haag-Streit BM 900 (entry model): $6,500-$8,500. Haag-Streit BP 900: $9,000-$12,000. Zeiss SL 130: $5,500-$8,000. Topcon SL-D701: $6,000-$8,500. Reichert Xcel 250: $3,500-$5,500. This SciMed 3-step Haag-Streit-type slit lamp delivers the same Galilean optical system, same 6-aperture slit disc, same 4-filter selection, same 0-180° slit rotation, and same clinical utility for anterior segment biomicroscopy — at $1,799 direct with same-day US ship. Ideal for optometry practices building their first exam lane, OB-GYN + primary care offices adding diabetic retinal screening capability, and community eye clinics globally.

Optical + illumination specifications

Microscope type Haag-Streit-type Galilean binocular
Magnification changer 3-step (5×, 10×, 20× objective)
Eyepieces Wide-field 15× (standard)
Total magnification 15×, 30×, 60× (with WF 15× eyepieces)
Slit rotation 0° to 180° continuous
Illumination tilt 5°, 10°, 15°, 20°
Slit diaphragm apertures 12, 9, 7, 3, 0.2 mm + wedge-shape variable
Filters Cobalt Blue · Green (red-free) · Yellow · Open aperture
Illumination bulb Halogen 6V 20W Philips / Osram (industry-standard, easily replaced)
Base Precision joystick control with locking mechanism, aluminum base
Power supply 110V or 220V (specify at order)
Standard accessories Halogen bulb + Mirror + Testing rod + Dust cover + Fuse + Manual
Optional accessories Motorized/manual table · Beam splitter + CCD attachment · CCD camera · Imaging system · Applanation tonometer (Goldmann-style)
Warranty 1-year parts + labor · 5-year replacement bulb availability

Clinical applications

  • Anterior segment biomicroscopy — cornea, iris, lens, anterior chamber examination
  • Corneal disease assessment — keratitis, ulcer, dystrophy, dry eye
  • Cataract grading (LOCS III / Oxford grading with slit-beam parallelepiped)
  • Anterior chamber inflammation (cell + flare grading for uveitis)
  • Iris + pupil examination (transillumination defects, iris atrophy, PXF)
  • Lens capsule + posterior capsule assessment (PCO after cataract surgery)
  • Anterior vitreous face inspection
  • Fluorescein staining evaluation with cobalt blue filter (corneal abrasions, dry eye)
  • Rose bengal / lissamine green staining under yellow filter
  • Applanation tonometry (with optional Goldmann tonometer attachment)
  • Contact lens fitting + follow-up
  • Foreign body identification + removal

Best for

  • Optometry practices — new exam lane build, replacing worn OEM Haag-Streit / Zeiss / Topcon
  • Ophthalmology satellite offices — secondary lane for high-volume anterior segment work
  • Community + rural eye clinics — cost-effective slit lamp for underserved populations
  • OB-GYN + primary care — diabetic retinopathy screening (anterior segment + fundus with 90D lens)
  • University optometry programs — teaching lane equipment at institutional pricing
  • Emergency departments — ED slit lamp for foreign body + red-eye workup
  • International eye clinics (India, GCC, LATAM, MENA, SE Asia, Sub-Saharan Africa) via DDP
  • Cataract camps + NGO surgical missions — Aravind / L V Prasad style outreach
  • Veterinary ophthalmology — slit lamp exam for canine + feline ocular disease

Buying for a practice, hospital, or academic program?

  • Volume pricing on 3+ unit orders — practice multi-lane builds, teaching program lane fleets
  • Net-30 invoicing for verified optometry / ophthalmology / academic accounts
  • Bundle pricing — pair with Motorized Slit Lamp Table ($1,999) + Wireless Indirect Ophthalmoscope for complete exam-lane build at $4,999.99
  • Applanation tonometer add-on — Goldmann-style tonometer $400 (matches integrated 5-Step Slit Lamp package)
  • Beam splitter + camera — documentation package $800-1,500
  • SAM.gov / VA compliant procurement — VA ophthalmology + military eye clinics
  • International DDP — GCC, MENA, LATAM, SE Asia, India, Sub-Saharan Africa
  • NGO / cataract camp pricing — significant discounts for verified outreach programs
Email procurement →(669) 265-9353

Frequently asked questions

How does this compare to a Haag-Streit BM 900?

Feature-parity on the essential optical system — Galilean binocular, 5-10-20× steps, 6-aperture slit, 4-filter selection, 0-180° rotation, standard halogen 6V/20W. Differences: Haag-Streit BM 900 has slightly better lens coatings (marginal image contrast improvement in advanced pathology) and premium Swiss build quality. Price differential: $1,799 vs $6,500-$8,500. For 90%+ of clinical anterior segment work, imaging is indistinguishable.

Can I add an applanation tonometer?

Yes — Goldmann-style tonometer accessory ($400) mounts to the slit lamp arm. Same optical / mechanical interface as Haag-Streit AT 900. For clinics needing integrated tonometer + beam splitter + camera in one unit, our 5-Step Slit Lamp ($1,699) ships pre-integrated.

Can I document findings with a camera?

Yes — beam splitter + CCD or CMOS camera adapter ($800-1,500 package). Standard C-mount interface accepts USB, HDMI, or 4K cameras. For clinics wanting integrated camera + documentation, consider our 5-Step Slit Lamp with camera pre-integrated.

Do I need a table?

Slit lamp requires a table/stand for patient exam. Our Motorized Slit Lamp Table ($1,999.99) is pre-matched — 65-90cm adjustable height, universal 4-hole top plate. Manual (non-motorized) tables available on request ~$500.

What's the warranty?

1-year parts + labor on all optical + mechanical components. Halogen bulb: 90-day (consumable). 5-year replacement bulb availability from San Jose warehouse. Extended 3-year warranty available for +$200 at order.

How is this shipped?

US: LTL freight or FedEx / UPS Ground insured (~35 kg crated). International: DHL Express DDP or ocean freight DDP for 2+ unit orders. Ships to India, LATAM, MENA, SE Asia, GCC, UK, EU, AU/NZ, Sub-Saharan Africa.

Why buy direct from SciMed

  • ~25-30% of Haag-Streit / Zeiss pricing — same optical system, same clinical utility, same-day US ship
  • Complete exam-lane bundle available — slit lamp + motorized table + indirect ophthalmoscope for $4,999.99
  • Practice + academic + NGO procurement — Net-30, SAM.gov, VA, tax-exempt, cataract camp pricing
  • International DDP — expanding eye care access in emerging markets
  • Documentation upgrades — tonometer, beam splitter, camera at 25% of OEM cost
  • Standard halogen bulbs — Philips/Osram commercial availability, no proprietary parts
View full details
