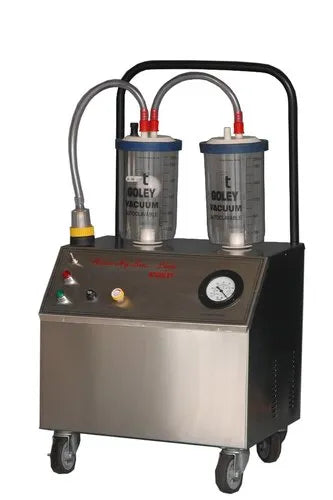

Portable Liposuction Suction Machine 110V – Medical Grade
Portable Liposuction Suction Machine 110V – Medical Grade
Couldn't load pickup availability
Medical-grade portable liposuction suction machine, 110V — adjustable vacuum for cosmetic surgery, autologous fat transfer, and dermatology procedures. Designed for licensed plastic surgery clinics, cosmetic dermatology practices, aesthetic medicine centers, and academic teaching programs. $2,799.99 direct from a US manufacturer — vs $10,000-40,000 for industrial-grade Byron / Toomey / Wells-Johnson units. Same-day US dispatch, international DDP shipping to major cosmetic surgery markets (LATAM, GCC, MENA, SE Asia).
Clinical applications
- Tumescent liposuction (small-to-medium volume) — chin, jawline, upper arms, submental fat, small abdominal / flank contouring under local anesthesia
- Autologous fat transfer harvest — Coleman-style fat aspiration for graft transfer to face, breast, buttocks (Brazilian butt lift), hands
- Gynecomastia correction (male chest) — grade I-II under local anesthesia
- Lipoma removal (small) — surgical suction adjunct to blunt dissection
- Cosmetic dermatology adjunct — post-cannula bruise decompression, hematoma evacuation
- Emergency abscess drainage — controlled suction of purulent collections
- Veterinary aesthetic surgery — small-animal liposuction, hematoma management
- Academic teaching — plastic surgery residency programs, cadaveric training
Specifications
| Vacuum range | 0-750 mmHg adjustable (continuous) |
|---|---|
| Air flow rate | ~30-40 L/min at peak vacuum |
| Power | 110V AC / 60Hz (220V variant on request for international) |
| Motor | Oil-free rotary vane, thermal-overload protected |
| Collection canister | 2 liters (autoclavable polysulfone) |
| Bacterial filter | 0.2 μm hydrophobic — protects pump from overflow |
| Vacuum control | Analog gauge + fine-adjust knob |
| Portability | Wheeled base OR bench-mount (~15 kg / 33 lbs) |
| Noise level | ~50-55 dB at maximum vacuum |
| Included accessories | 2 × silicone suction tubing (6 mm ID), 2 × collection canister caps, foot pedal control, 1 × spare bacterial filter |
| NOT included | Liposuction cannulas (sold separately, brand/size to buyer preference) |
| Regulatory | FDA Class II Medical Device (Product Code JCX — Suction, Powered, Aspiration) |
| Warranty | 1-year manufacturing defect · 24-month replacement parts |
| Country of origin | Manufactured for SciMed (US-warehoused, San Jose, CA) |
Comparison to alternatives
| Feature | SciMed Portable | Byron LipoAssist | Wells-Johnson / Toomey | Aftermarket Chinese |
|---|---|---|---|---|
| Price | $2,799.99 | $12,000-18,000 | $15,000-40,000 | $800-1,800 |
| Vacuum | 0-750 mmHg | 0-760 mmHg | 0-760 mmHg | 0-600 mmHg typical |
| Air flow | 30-40 L/min | 30-45 L/min | 40-60 L/min | Variable |
| Canister | 2 L autoclavable | 2-3 L | 2-4 L | 1-2 L, variable QC |
| Portability | 15 kg wheeled | 18-25 kg wheeled | 25-40 kg cart | 10-15 kg |
| Best for | Solo aesthetic practice, small-to-medium volume | Multi-surgeon center | Hospital OR | Not for cosmetic surgery — wound care only |
| US warehouse | Yes — same-day | Yes — 3-5 days | Yes — 5-7 days | China — 14-30 days |
| Warranty | 1-year + 24mo parts | 1-2 years | 1-3 years | Variable / none |
What's in the box
- 1 × Suction pump unit — oil-free rotary vane motor with vacuum gauge + adjustment knob
- 1 × 2L collection canister — autoclavable polysulfone with overflow float
- 2 × Silicone suction tubing (6 mm inner diameter, autoclavable)
- 2 × Canister caps — spare O-ring sealed
- 1 × Foot pedal — hands-free on/off control
- 1 × Bacterial filter — 0.2 μm hydrophobic, pump-protection
- 1 × Power cord — 110V US 3-prong
- User manual + IFU — operation, cleaning, maintenance procedures
Liposuction cannulas are NOT included. Buyer selects cannulas separately (typically 2-4 mm diameter, various tip configurations from Byron, Wells-Johnson, or other cannula manufacturers). Reason: cannula preference is highly surgeon-specific. We can quote compatible cannula sets on request.
Who buys this machine
- Solo plastic surgeons — private practices doing 10-40 lipo cases/month, needing capital-efficient equipment
- Cosmetic dermatology clinics — MDs doing small-volume lipo, fat transfer, gynecomastia correction
- Aesthetic medicine centers — MediSpa with MD medical director, doing chin/jawline/small-area contouring
- Facial plastic surgeons — fat harvest for facial rejuvenation grafts
- Reconstructive breast surgeons — fat transfer post-mastectomy reconstruction
- OB/GYN practices — labiaplasty, mons pubis contouring
- Veterinary aesthetic surgery — small-animal cosmetic procedures
- Academic residency programs — plastic surgery, dermatology, cosmetic surgery training
- International cosmetic surgery clinics — LATAM (Colombia, Brazil, Mexico), GCC (UAE, Saudi Arabia), SE Asia (Thailand, South Korea, Philippines) — massive medical tourism markets
Cleaning + Sterilization Between Cases
- Collection canister: empty, rinse, autoclave at 121°C / 15 psi / 20 min
- Silicone tubing: autoclavable — 121°C standard cycle
- Cannulas: per manufacturer instructions (usually autoclave 134°C or ETO)
- Bacterial filter: single-patient use — replace after each case
- Pump unit: wipe external surfaces with 70% IPA between cases; do NOT immerse (electrical). Annual factory-service recommended for high-volume practices.
- Between different patients: full canister/tubing autoclave. New bacterial filter. New cannulas or fully-sterilized reusable cannulas.
Regulatory + Practice Compliance
- FDA Class II Medical Device — Product Code JCX (Suction, Powered, Aspiration). Registered under FDA 510(k) equivalent — this is the standard classification for medical suction machines.
- State licensure: your state medical board dictates which procedures you can perform. Liposuction is generally within scope for plastic surgeons, dermatologists, cosmetic surgeons — check state-specific rules for OB/GYNs and family physicians.
- Facility accreditation: AAAASF, AAAHC, or hospital-based OR settings recommended for lipo cases exceeding 5 L aspirated. Small-volume in-office lipo (under 3 L) may not require formal accreditation depending on state.
- Anesthesia limits: tumescent local (Klein technique) is standard for in-office use with this machine. General anesthesia + IV sedation requires appropriate anesthesia provider + monitoring per state rules.
- Malpractice coverage: ensure your malpractice policy covers cosmetic surgical procedures — many general-medicine policies exclude aesthetic surgery.
Buying for a cosmetic surgery or aesthetic practice?
SciMed supplies liposuction suction machines to plastic surgery practices, cosmetic dermatology clinics, aesthetic medicine centers, and academic teaching programs.
- Volume pricing on 2+ unit orders (backup machine + primary is standard for high-volume practices)
- Net-30 invoicing for verified medical practices
- SAM.gov / VA / DoD procurement compliant (military plastic surgery training programs, VA reconstructive surgery)
- International DDP shipping to major cosmetic surgery markets — Colombia, Brazil, Mexico (LATAM), UAE, Saudi Arabia, Kuwait (GCC), Thailand, South Korea, Philippines (SE Asia)
- Cannula quote-with-order — we can source compatible cannula sets from Byron, Wells-Johnson, or Chinese equivalents based on your surgeon's preference
- Equipment financing available via medical equipment lenders (12-60 month terms) — email for referral
Frequently asked questions
Is this suitable for a solo plastic surgeon's private practice?
Yes — this is the exact target buyer. Solo/small-group plastic surgery practices doing 10-40 lipo cases/month benefit most from this capital-efficient tier. Big-volume centers (100+ cases/month) usually invest in industrial units for redundancy + throughput; solo practices don't need that scale.
Can this handle large-volume lipo (over 5 L aspirated)?
Vacuum + flow rate can, but per AAAASF / ASPS guidelines, large-volume liposuction (>5 L) requires accredited OR facility, general or twilight anesthesia, and appropriate monitoring — considerations beyond the machine itself. For high-volume cases, most surgeons prefer industrial units (Byron LipoAssist, Wells-Johnson) with 3-4 L canisters. This unit handles up to ~3-4 L total case volume comfortably.
Does this include liposuction cannulas?
No. Cannulas are not included because cannula preference is highly surgeon-specific (diameter, tip design, length, brand). We can quote compatible cannula sets from Byron, Wells-Johnson, Nano, or Chinese-manufactured equivalents on request — typical cannula set: $200-800.
How does this compare to Byron LipoAssist?
Byron LipoAssist is the industry benchmark — $12,000-18,000, integrated infiltration + aspiration, sold direct to hospitals + large centers. Our machine matches Byron's vacuum + flow specs at 20% of the price, without integrated infiltration (you'd use separate tumescent infiltration pump). For solo practices where you already own an infiltration setup, our unit gets you 90% of the capability at a fraction of the cost.
What autoclave cycle for the canister and tubing?
Standard 121°C / 15 psi / 20 minutes. Canister is polysulfone (high-heat compatible). Silicone tubing is autoclavable. Bacterial filter is single-use — replace after each patient.
Is 110V a limitation for international clinics?
Yes if your facility is 220V-only. We can supply the 220V/50Hz variant on request (add $150 for the different motor + power supply). For international orders, we default to 220V unless you specifically request 110V.
Do you offer training for the machine?
Basic operation is covered in the IFU. Surgical technique (tumescent infiltration, cannula selection, aspiration technique) is your responsibility — plastic surgery residency training or cadaveric fellowship courses cover this. We don't teach liposuction surgery, but the machine works out-of-the-box for any trained surgeon.
Can I use this for fat grafting (Coleman technique)?
Yes — this is a common use case. Reduce vacuum to 200-350 mmHg for gentle fat harvest (higher vacuum damages adipocytes for graft transfer). Use a Coleman-style low-pressure harvest cannula. Standard collection canister works. Some surgeons prefer smaller 1L canisters for fat grafting — we can quote separately.
What's the warranty coverage?
1-year manufacturing defect warranty from ship date. Pump motor, vacuum gauge, canister, tubing manufacturing defects → replacement or refund. Replacement parts + service available for 24 months (24mo parts commitment). Wear-and-tear (10-year typical motor life) not covered.
Do you accept purchase orders from academic medical centers?
Yes. Net-30 invoicing standard for verified academic + hospital + VA + military facilities. SAM.gov compliant procurement. Email clinic@scimedstore.com for account setup.
How is this shipped?
US: FedEx Ground or freight (depending on your address) with signature required. Same-day dispatch on orders before 2 PM Pacific. International: DHL Express for individual units, ocean freight DDP for bulk (3+ units). Ships to LATAM, GCC, MENA, SE Asia, UK/EU, AU/NZ, India.
Why buy direct from SciMed
- US warehouse — same-day dispatch on orders before 2 PM Pacific; you get equipment for your next case, not a 3-week wait
- 20% of the price of Byron / Wells-Johnson — same vacuum + flow specs, without integrated infiltration you may not need
- Real medical-grade construction — polysulfone autoclavable canister, silicone medical tubing, hydrophobic bacterial filter (not consumer-grade)
- US-based support — MD/PA/NP/technician questions on setup, cleaning, service go to San Jose team
- Practice procurement — Net-30, SAM.gov, VA-compliant, PO acceptance for verified accounts
- International DDP shipping — major cosmetic surgery markets: Colombia, Brazil, Mexico, UAE, Saudi Arabia, Thailand, South Korea, India
- Cannula sourcing — quote-with-order for compatible cannula sets from Byron, Wells-Johnson, or aftermarket brands
Shipping + Licensing: Free continental US freight. International DHL Express + DDP freight to major cosmetic surgery markets. Medical license verification required at checkout — orders without verification will not ship. Practice procurement: clinic@scimedstore.com.
