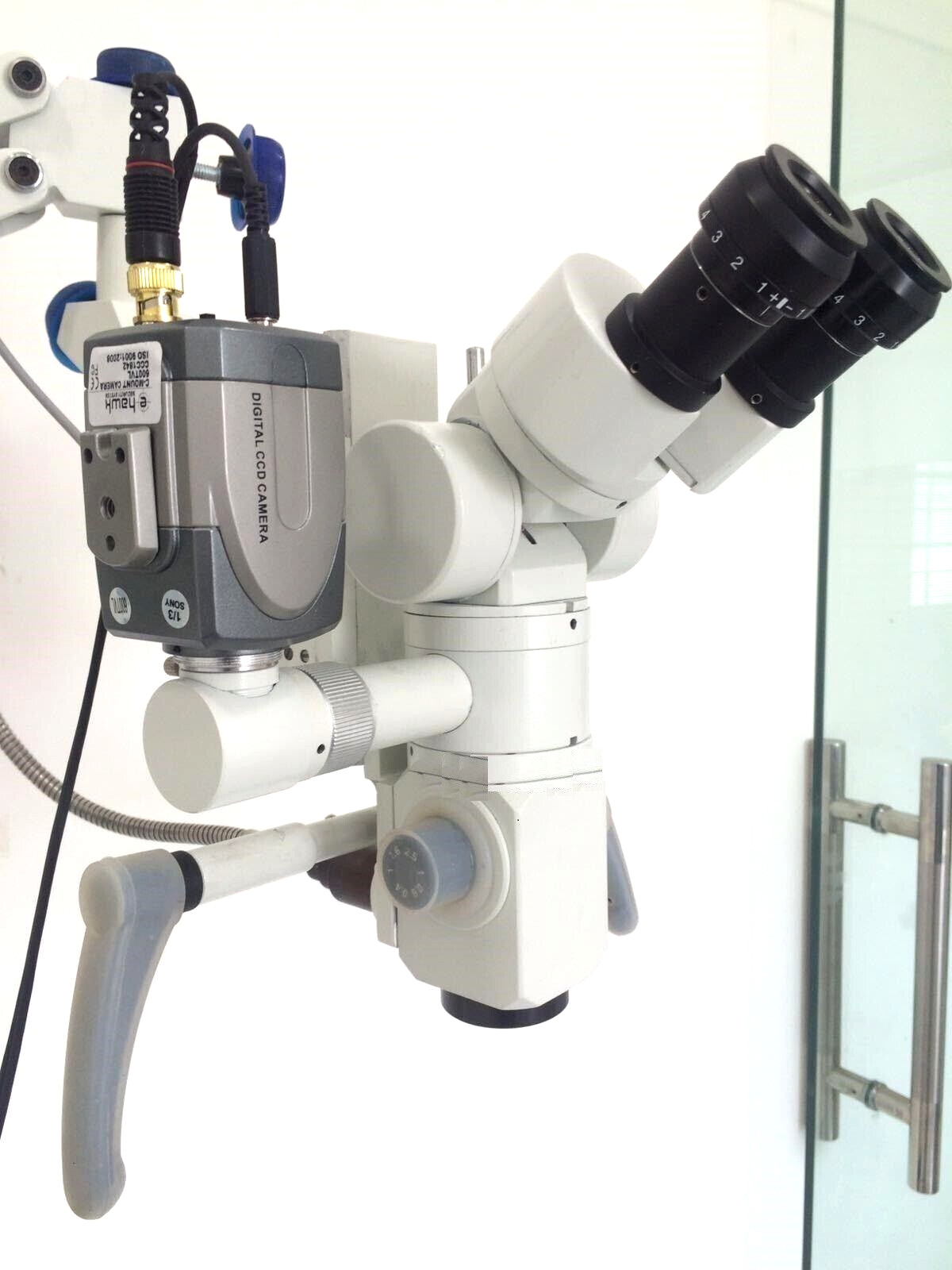

Endodontic Dental Operating Microscope — 5-Step Magnification (4x–25x), Inclinable Binoculars
Endodontic Dental Operating Microscope — 5-Step Magnification (4x–25x), Inclinable Binoculars
Couldn't load pickup availability
Full-size dental operating microscope for endodontics, restorative dentistry, oral surgery, and periodontal microsurgery. 5-step magnification (4x, 6x, 10x, 16x, 25x) with 0-180° inclinable binoculars, 200mm objective, 80,000 Lux twin-halogen coaxial fiber-optic illumination, counter-balanced pantographic arm on mobile floor stand. Made in India. $4,999 direct — versus $14,000-$22,000 for Global Surgical G6, Seiler Alpha Air 6, or Zumax OMS2360.
Why endodontists use a dental operating microscope
Once you've done a root canal at 10-25× magnification with coaxial fiber-optic illumination on the pulp chamber floor, you can't go back to loupes. The microscope reveals MB2 canals (missed in ~40% of maxillary molars under loupes), calcified canal orifices, missed isthmus tissue, hairline fractures, and vertical root fractures that determine treatment plan vs extraction. American Association of Endodontists (AAE) recommends dental microscopes for endodontic practice; ADA CE credits include microscope-technique training. This is the equipment that changes clinical outcomes and case-acceptance rates for cosmetic + restorative + endodontic work.
Specifications
| Magnification | 5-step: 4×, 6×, 10×, 16×, 25× (with 10× eyepieces) |
|---|---|
| Eyepieces | 10× Wide-Field (W.F.) |
| Binocular tubes | 0-180° inclinable — accommodates every operator posture, from stand-up hygienist work to seated endo |
| Objective lens | F=200mm focal length |
| Field of view | 50mm (at low magnification) |
| Field of illumination | 70mm |
| Interpupillary distance (IPD) | 55-75mm adjustable |
| Focus | Manual fine focusing knob |
| Illumination | 15V / 150W twin halogen lamps, 100% coaxial through-the-lens fiber-optic |
| Illumination intensity | >80,000 Lux maximum at standard working distance |
| Fiber-optic light guide | 1.5m |
| Arm | Counter-balanced pantographic arm, 320° rotation |
| Vertical range | 250-300mm counter-balanced arm travel |
| Floor stand | Mobile on caster wheels for lane reconfiguration + absolute stability at rest |
| Base dimensions | 600 × 500mm (approx.) |
| Total height | 1,500mm (approx.) |
| Weight | 65 kg (approx.) |
| Power | 220V, 50/60 Hz (110V on request) |
| Country of origin | Made in India — quality-assured for export |
| Warranty | 1-year parts + labor · 5-year replacement halogen bulb availability |
Comparison to alternatives
| Feature | SciMed Endo Microscope | Global G6 | Seiler Alpha Air 6 | Zeiss Extaro 300 |
|---|---|---|---|---|
| Price | $4,999 | $16,000-$22,000 | $14,000-$18,000 | $30,000-$45,000 |
| Magnification steps | 5 (4x-25x) | 5 (2.6x-16x) | 5 (3x-19x) | 5 (variable zoom) |
| Objective focal length | 200mm | 200mm | 200mm | 200-250mm variable |
| Illumination | 80,000+ Lux halogen fiber-optic | LED (Global uses LED) | LED / xenon | LED with fluorescence modes |
| Inclinable binoculars | Yes, 0-180° | Yes | Yes | Yes |
| Mount type | Mobile floor stand | Wall / ceiling / floor | Wall / ceiling / floor | Wall / ceiling |
| Documentation port | Optional camera adapter | Yes (integrated) | Yes (integrated) | Yes (integrated 4K) |
| Lead time | Same-day US ship | 2-4 weeks | 2-4 weeks | 6-12 weeks |
| Warranty | 1-year | 3-year | 3-year | 2-year |
Best for
- Endodontists — root canal treatment, MB2 canal detection, calcified canal negotiation, apical microsurgery, retreatment
- Restorative + cosmetic dentists — precision veneer prep, cavity margin refinement, cement removal, direct composite artistry
- Oral surgeons — apicoectomy, cyst enucleation, periapical surgery, dental implant precision placement
- Periodontists — microsurgical soft tissue grafting, papilla preservation flap, root coverage procedures
- Prosthodontists — crown lengthening, precision abutment prep, precision impression review
- General dentists transitioning to magnification-dependent workflows (case acceptance + clinical outcomes)
- Dental schools + residency programs — endodontic + operative dentistry teaching lanes
- Community health center dental clinics — expanding scope of endodontic services vs referring out
- International dental practices (India, GCC, LATAM, SE Asia) via DDP procurement
- Dental research programs — restoration wear studies, clinical technique research
Clinical applications
| Application | Recommended magnification | Working distance |
|---|---|---|
| Orientation, gross access cavity prep | 4x-6x | 200mm |
| Canal orifice identification, initial file placement | 10x | 200mm |
| MB2 detection, calcified canal negotiation | 16x | 200mm |
| Isthmus tissue removal, fracture line examination | 25x | 200mm |
| Restorative margin work | 6x-10x | 200mm |
| Composite layering + polishing | 10x-16x | 200mm |
| Periodontal microsurgery flap design | 6x-10x | 200mm |
| Apical microsurgery — retrograde prep | 16x-25x | 200mm |
Illumination — why 80,000+ Lux matters
- Coaxial fiber-optic delivery — light travels through the optical axis to the target with zero shadow, critical for looking into a 1mm canal orifice at 25× magnification
- 15V/150W twin halogen lamps — dual bulbs allow bulb-out redundancy mid-case (change one, keep working)
- 80,000+ Lux at working distance — matches Global G6 and Seiler LED brightness at the 200mm focal length; adequate for endodontic pulp chamber work
- Fiber-optic light guide 1.5m — long enough to place lamp housing away from the operating field, keeping heat and cable clutter clear
- LED retrofit available — halogen-to-LED conversion kit ($400) reduces bulb changes from every 6-12 months to every 5-8 years
Mobility + stability
- Mobile floor stand — 600×500mm base with lockable caster wheels lets you reposition between chairs in a multi-chair practice without wall/ceiling mount permanence
- 320° arm rotation — reach any position around the patient chair without moving the base
- 250-300mm vertical range — accommodates operator + patient positioning without base repositioning
- Counter-balanced pantographic arm — microscope "floats" at any position with no drift; light finger touch to reposition, then holds absolute stability during the procedure
- 65 kg base weight — heavy enough for stability during precision procedures, but wheeled for portability
Buying for a dental practice, DSO, or dental school?
SciMed supplies dental operating microscopes direct to endodontists, general dental practices, dental service organizations (DSOs), dental + hygiene schools, and academic dental residency programs.
- Volume pricing on 3+ unit orders — DSO multi-office roll-outs, dental school teaching lane build-outs
- Net-30 invoicing for verified dental practices, DSOs, academic dental programs
- Practice financing — dental equipment lenders offer 24-84 month terms on operating microscopes; email us for referral
- Camera + documentation accessories — 4K + full-HD camera adapters, beam splitter, teaching sidearm, iPad + monitor mounts
- International DDP shipping — India, LATAM (Mexico/Brazil), MENA (UAE/Saudi/Egypt), SE Asia (Vietnam/Indonesia/Philippines), GCC
- Freight quotes on request — ships crated ~90 kg, LTL freight typical for US, ocean for 2+ unit international orders
- CE / installation training — dental microscope technique training video library included; live remote coaching available for early cases
Frequently asked questions
How does this compare to a Global Surgical G6?
Feature-for-feature: same 5-step magnification with 4x-25x range, same 200mm objective, same inclinable binoculars, same counter-balanced pantographic arm. Difference: Global G6 uses LED illumination (this uses halogen fiber-optic delivering equivalent 80,000+ Lux, with LED retrofit available). Global G6 typically has a slightly more polished operator experience and 3-year warranty vs our 1-year. Price differential: $4,999 vs $16,000-$22,000. For an endodontist building their first microscope-driven practice or a DSO deploying multiple lanes, the SciMed unit delivers the essential clinical capability at 25-30% of Global pricing.
Will this fit in a standard operatory?
Base is 600×500mm — fits most standard 12'×10' operatories without repositioning the chair. Total height 1,500mm reaches over a supine patient at any chair position. Mobile floor stand means you can wheel it into a specific operatory when needed vs permanent wall/ceiling mount commitment.
Can I add a camera for documentation?
Yes — camera adapter port on the beam splitter accepts standard 4K + full-HD dental cameras (Sony, EIZO, DentalEye, various generic USB dental cameras). Beam splitter accessory sold separately — email us for camera + adapter recommendations based on your documentation workflow.
What's the working distance for endodontics?
200mm working distance is standard for endodontic + restorative work — adequate for hand piece + Endo file access while keeping operator's face at comfortable seated posture. This matches Global G6, Seiler, and Zeiss standard endo working distances.
How long do the halogen bulbs last?
Twin 15V/150W halogen bulbs typically last 6-12 months in daily 4-6 hour endo practice (~1,500-2,500 hours). Replacement bulbs are standard commercial availability, ~$25-40 each. LED retrofit kit ($400) replaces both bulbs with a single LED module rated for 30,000-50,000 hours (5-8 years typical) — worth considering if you're doing high-volume clinical work.
Can this be wall-mounted or ceiling-mounted?
This unit ships as a mobile floor-stand configuration. Wall + ceiling mounts are available as separate accessories on request — email us your operatory dimensions and we'll quote the appropriate mount kit. For DSO multi-office rollouts, ceiling mount is often preferred for permanent installation; for single-office practices with multiple operatories, mobile stand is more flexible.
Is training or CE available?
Digital dental-microscope-technique training library included with purchase (30+ hours of video content covering endo, restorative, and periodontal microsurgery workflows). Live remote coaching for your first 5 clinical cases available on request. For AAE / ADA CE credits, consult the training resources at aae.org and ada.org.
What's the warranty?
1-year parts + labor on all optical + mechanical components (binoculars, objective, arm, base, illumination system). Halogen bulbs: 90-day (consumable). Replacement bulbs + parts stocked in San Jose warehouse for 5+ years post-purchase. Extended 3-year warranty available for +$400 at time of order.
How is this shipped internationally?
US: LTL freight (crated ~90 kg, lift-gate required). International: DHL Express DDP for single-unit urgent shipments (~$400-800 depending on country), ocean freight DDP for 2+ unit orders (cheaper per unit). Ships to India, LATAM (Mexico/Brazil/Colombia), MENA (UAE/Saudi/Egypt), SE Asia (Vietnam/Indonesia/Malaysia/Philippines), GCC (UAE/Saudi/Kuwait/Qatar), UK, EU, AU/NZ.
Why buy direct from SciMed
- 25-30% of Global G6 / Seiler pricing — same clinical capability at 5x fewer dollars
- Same-day US ship — no 2-4 week manufacturer lead time
- Made in India — proven manufacturer with international export QA
- US-based support — sizing, installation, technique coaching from San Jose team
- Practice + DSO procurement — Net-30, equipment financing referral, volume pricing on multi-unit rollouts
- International DDP — India, GCC, LATAM, SE Asia dental markets
- Camera + documentation accessories — beam splitter, teaching sidearm, 4K adapter
- LED retrofit available — future-proof halogen-to-LED path
- Training library included — 30+ hours dental microscope technique content
Shipping: Continental US LTL freight (lift-gate required, ~90 kg crated). International DHL Express or ocean freight DDP. Dental practice + DSO procurement: clinic@scimedstore.com.
