Digital Electronic Tourniquet Model 120 — Microcontroller, 50-400 mmHg, Battery Portable, Autoclavable Cuff

$1,775.00 USD

Sale Sold out

Doctor Recommended

No Rx Required

Ships Same-Day

30-Day Returns

Taxes included. Shipping calculated at checkout.

Quantity

Model 120 Digital Electronic Tourniquet — fully automatic microcontroller-based single-port surgical tourniquet system for orthopedic + vascular + hand + plastic surgery. Motorized inflation pump maintains set cuff pressure automatically (50-400 mmHg range, ±4 mmHg accuracy, 2 mmHg resolution), 16×2 LCD display shows real-time pressure + elapsed time (0-299 min), battery-operated + AC-rechargeable for portable OR use, 5 different-size autoclavable silicon cuffs included. ISO 9001:2015 + ISO 13485:2013 + WHO-GMP certified. $1,775 direct — versus $4,500-$8,500 for VBM APT / Zimmer ATS-3000 / Stryker Instrument Tourniquet systems.

✓ Microcontroller Auto Control✓ 50-400 mmHg Range✓ ±4 mmHg Accuracy✓ 5 Autoclavable Cuffs✓ Battery Portable✓ ISO 13485 + WHO-GMP✓ 0-299 min Timer✓ 3 kg Portable

Where this sits in the market: Zimmer ATS-3000 dual-cuff tourniquet: $6,500-$8,500. Stryker Instrument Tourniquet: $5,500-$7,500. VBM APT single-cuff: $4,500-$6,000. This SciMed Model 120 digital tourniquet delivers the same clinical function — automatic pressure maintenance, 50-400 mmHg range, ±4 mmHg accuracy, autoclavable cuffs, portable battery operation — at $1,775 with same-day US ship. Ideal for orthopedic + vascular + hand + plastic surgery centers, community hospitals, ambulatory surgery centers, and international OR build-outs.

Specifications

Model	120
Type	Single-port automatic microcontroller-based
Cuff pressure range	50 to 400 mmHg (adjustable in operation)
Pressure resolution	2 mmHg
Pressure accuracy	±4 mmHg (referenced to set pressure)

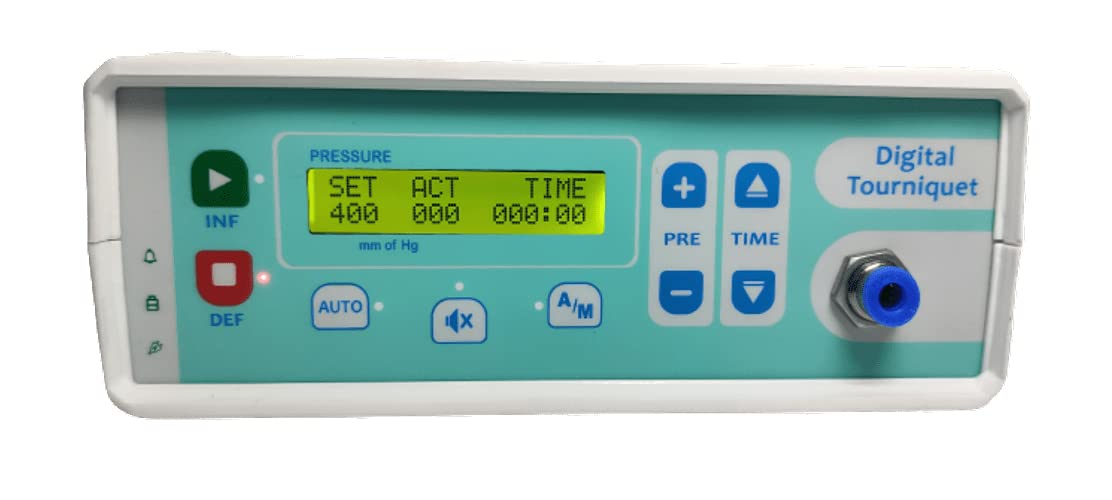

Display	16×2 LCD — pressure + elapsed time simultaneously
Display time format	MM:SS
Duration timer	0-299 minutes
Inflation	Motorized pump — maintains pressure automatically
Cuff type	Silicon, autoclavable at 134°C
Cuff sizes	5 different sizes included (pediatric to bariatric)
Cuff tubing	Long straight silicon tubing (autoclavable)
Battery	Internal rechargeable, built-in charging circuit — plug in power cable to recharge
Portability	Portable, 3 kg approximate weight, 220 × 200 × 80 mm
Power input	230V 50/60 Hz (AC charging) — battery operation independent of mains
Certification	ISO 9001:2015 · ISO 13485:2013 · WHO-GMP
Application	Orthopedic + vascular + hand + plastic + general surgery
Warranty	1-year parts + labor · 3-year on microcontroller board

Clinical applications

Orthopedic surgery — total knee arthroplasty (TKA), ACL / meniscus, foot + ankle, upper extremity
Vascular surgery — limb bypass, distal AV fistula, varicose vein procedures
Hand surgery — carpal tunnel release, trigger finger, Dupuytren's, complex fracture ORIF
Plastic surgery — hand + upper extremity reconstruction, digit replantation
Sports medicine — knee arthroscopy, shoulder arthroscopy
Pediatric surgery — pediatric ortho (with appropriate pediatric cuff size)
General surgery — extremity procedures requiring bloodless field
Military / trauma medicine — battlefield hemorrhage control training (adjunct)

Best for

Orthopedic surgery centers (dedicated ortho ORs + ASCs)
Community hospital OR — general surgery + extremity trauma
Ambulatory surgery centers — high-volume ortho / hand / plastic
Vascular surgery practices — limb bypass + fistula work
Military + VA orthopedic surgery centers (SAM.gov procurement)
International OR build-outs (India, GCC, LATAM, SE Asia) via DDP
NGO surgical missions + humanitarian orthopedic camps
Veterinary surgical hospitals (canine + equine limb surgery)

Buying for a hospital, ASC, or NGO?

Volume pricing on 3+ orders — multi-OR ortho + ASC build-outs
Net-30 invoicing for verified hospitals, ASCs, academic medical centers
SAM.gov / VA / DoD compliant procurement for federal + military surgical centers
GPO contracts (Vizient, Premier, HealthTrust) on request
WHO-GMP certified — WHO/UNICEF international health procurement compatible
NGO surgical mission pricing (Smile Train, MSF, Operation Rainbow, etc.)
International DDP shipping — India, LATAM, MENA, SE Asia, GCC, Sub-Saharan Africa
Extended service contracts — 3-year all-inclusive for high-volume centers
Replacement autoclavable cuffs stocked in San Jose ($60-120 each)

Email procurement →(669) 265-9353

FAQ

How does this compare to a Zimmer ATS-3000?

Feature parity on the clinical essentials — automatic pressure maintenance, 50-400 mmHg range, autoclavable silicon cuffs, portable battery operation, LCD display, timer. Zimmer ATS-3000 is dual-cuff (allowing IV regional anesthesia / Bier block) while Model 120 is single-port. For 80%+ of orthopedic + hand + vascular work, single-port is sufficient. Price differential: $1,775 vs $6,500-$8,500.

Are the 5 cuff sizes included?

Yes — 5 different silicon cuff sizes ship with the unit (pediatric small, pediatric large, adult small, adult medium, adult large / bariatric). All autoclavable at 134°C, standard 3-4 minute autoclave cycle.

How long does the battery last per case?

Typical single-case surgical use (60-180 min tourniquet time): 3-5 hours of operation per full charge. Multiple back-to-back cases OK. Recharge time to full: ~4 hours. Battery replacement: 3-5 years typical service life ($150 replacement).

Is Bier block regional anesthesia possible?

Bier block requires DUAL cuff system for safety. Model 120 is single-port — not appropriate for Bier block. For IV regional anesthesia, consider dual-cuff tourniquet systems (contact us for quote).

What's the warranty?

1-year parts + labor on all components. 3-year on microcontroller board (typically longest-life component). Consumables (silicon cuffs, battery) covered 90 days; expect ~$60-120 per cuff replacement in high-use OR environments.
