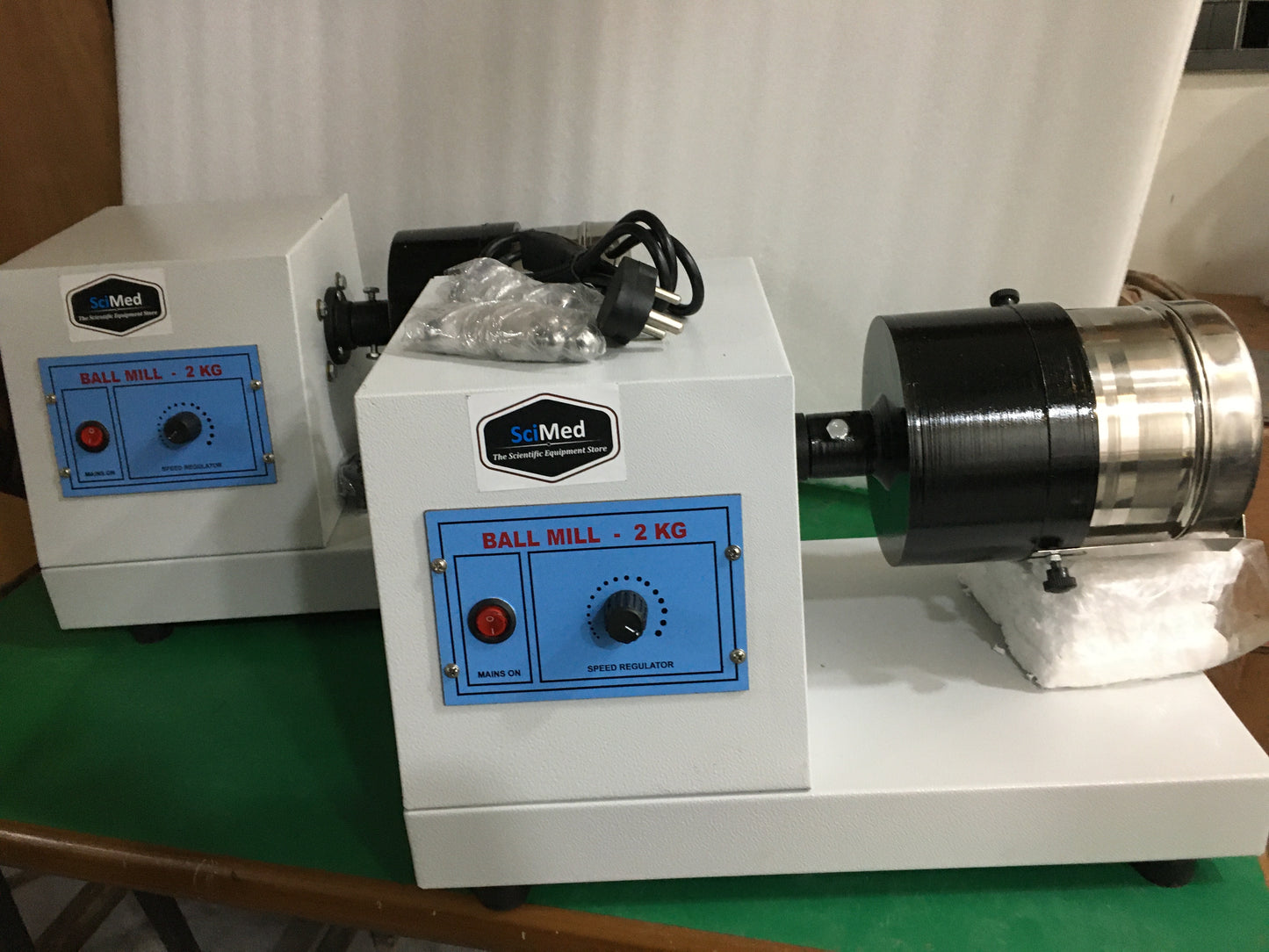

Laboratory Ball Mill 2 kg, Motor Driven, SS 304 Chamber, SS Grinding Balls, 80 RPM
Laboratory Ball Mill 2 kg, Motor Driven, SS 304 Chamber, SS Grinding Balls, 80 RPM
Couldn't load pickup availability
2 kg capacity motor-driven laboratory ball mill for sample preparation in mineral analysis, pharmaceutical formulation, ceramics, cement, coal, and metallurgical labs. Grinds hard and brittle materials down to fine powder (typically 10-100 μm) with minimum loss of moisture or volatile constituents. Includes SS 304 grinding container and stainless steel grinding balls (mixed sizes). 80 RPM rotation speed, precision-balanced rotating parts for low-vibration and quiet operation. 220V AC single-phase. $1,499 direct, versus $3,500-$8,000 for Retsch PM100 / Fritsch Pulverisette 5 / SPEX 8000M laboratory ball mills.
Specifications
| Capacity | 2 kg batch (SS 304 grinding container) |
|---|---|
| Rotation Speed | 80 RPM (fixed) |
| Motor | Single-phase AC motor, motorized drive |
| Grinding Chamber | SS 304 cylindrical container (removable for loading/unloading and cleaning) |
| Grinding Media | Stainless steel balls, mixed sizes (typically 6-25 mm), 500g-1kg included |
| Final Particle Size | Typically 10-100 μm depending on starting material and grind time |
| Sample Moisture Loss | Minimum, sealed chamber preserves moisture and volatile constituents |
| Vibration | Low, precision-balanced rotating parts |
| Noise | Quiet operation with weight-balanced drive |
| Power Supply | 220V AC single-phase (110V/60Hz on request) |
| Body | Steel frame, powder-coated exterior |
| Warranty | 1-year parts and labor · Motor 3-year |
Applications
| Industry | Typical Use |
|---|---|
| Pharmaceutical formulation | API micronization, tablet formulation grinding, herbal / Ayurvedic extract prep |
| Mineral and geological analysis | Rock, ore and sediment sample prep for XRF / ICP-MS / XRD |
| Cement and concrete QC | Cement, fly ash and aggregate fine grinding for compressive testing |
| Ceramics and refractory | Clay, alumina, zirconia and refractory raw material milling |
| Coal analysis | Coal sample prep for calorific value, ash content and proximate analysis |
| Metallurgical | Slag and alloy sample prep for compositional analysis |
| Food science | Grain, spice and herbal fine grinding for compositional testing |
| Fertilizer and agrochemical | Granular sample micronization for nutrient analysis |
| Ayurvedic, Unani and herbal | Vati / Churna / Bhasma preparation (traditional medicine mfr) |
| Battery and electronics | Cathode and anode material precursor blending |
| Academic teaching | Chemistry, materials science and geology lab courses |
Best For
- Pharmaceutical and nutraceutical formulation labs (small-batch API prep)
- Geochemistry, petroleum and mineral exploration labs
- Cement, ceramic, refractory and aggregate QC labs
- Coal and metallurgical analysis labs
- Ayurvedic, Unani and TCM traditional medicine producers
- Fertilizer and agrochemical QC labs
- University materials science, chemistry and geology teaching labs
- Contract testing and analytical services
- Battery R&D and cathode material prep
- International labs via DDP (India, LATAM, MENA, SE Asia, Sub-Saharan Africa)
Buying for a Lab, Pharma Facility, or Industrial QC Program?
- Volume pricing on 3+ orders, multi-lab pharma builds, university lab fleets
- Net-30 invoicing for verified pharma, academic, and industrial accounts
- SAM.gov / GSA / VA compliant procurement for federal and military labs
- Optional agate / zirconia / tungsten carbide grinding containers and balls (for contamination-sensitive analytical work), contact us for quote
- Replacement SS grinding balls ($120/kg) and SS 304 containers ($300) stocked
- International DDP shipping, India, LATAM, MENA, SE Asia, GCC, Sub-Saharan Africa
- Extended 3-year service contracts for high-utilization labs
FAQ
How does this compare to a Retsch PM100?
Retsch PM100 is a planetary ball mill (higher energy density, faster grinding to nanoscale, wider RPM range 100-650). Ours is a rotational ball mill (simpler mechanism, 80 RPM fixed, longer grind times to reach same particle size). For most analytical prep and traditional Ayurvedic work, this SciMed unit is fully adequate. For nanoscale and high-energy mechanochemistry, PM100 is required. Price differential: $1,499 vs $6,500-$8,500.
Can I use different grinding materials?
SS 304 balls and container ship standard. Agate (contamination-free for trace analysis), zirconia (harder and wear-resistant), tungsten carbide (highest hardness for very hard samples), and hardened chromium steel (industrial grinding) balls and containers available as accessories on request.
What particle size can I achieve?
Typical 10-100 μm final particle size depending on starting material and grind time. Softer materials (organics, Ayurvedic herbs) reach 10-30 μm in 30-60 min. Harder materials (rock, ceramic) take 2-4 hours to reach 50-100 μm. For sub-micron / nano grinding, planetary ball mills are required.
How much sample per batch?
2 kg batch capacity means you can grind up to 2 kg of raw material per run, typically fill container 30-50% to leave room for balls and head space. Grinding balls should equal 30-40% of container volume.
What's the warranty?
1-year parts and labor. Motor 3-year warranty. Grinding balls and container are consumables (wear during use); replacement stocked in San Jose.
