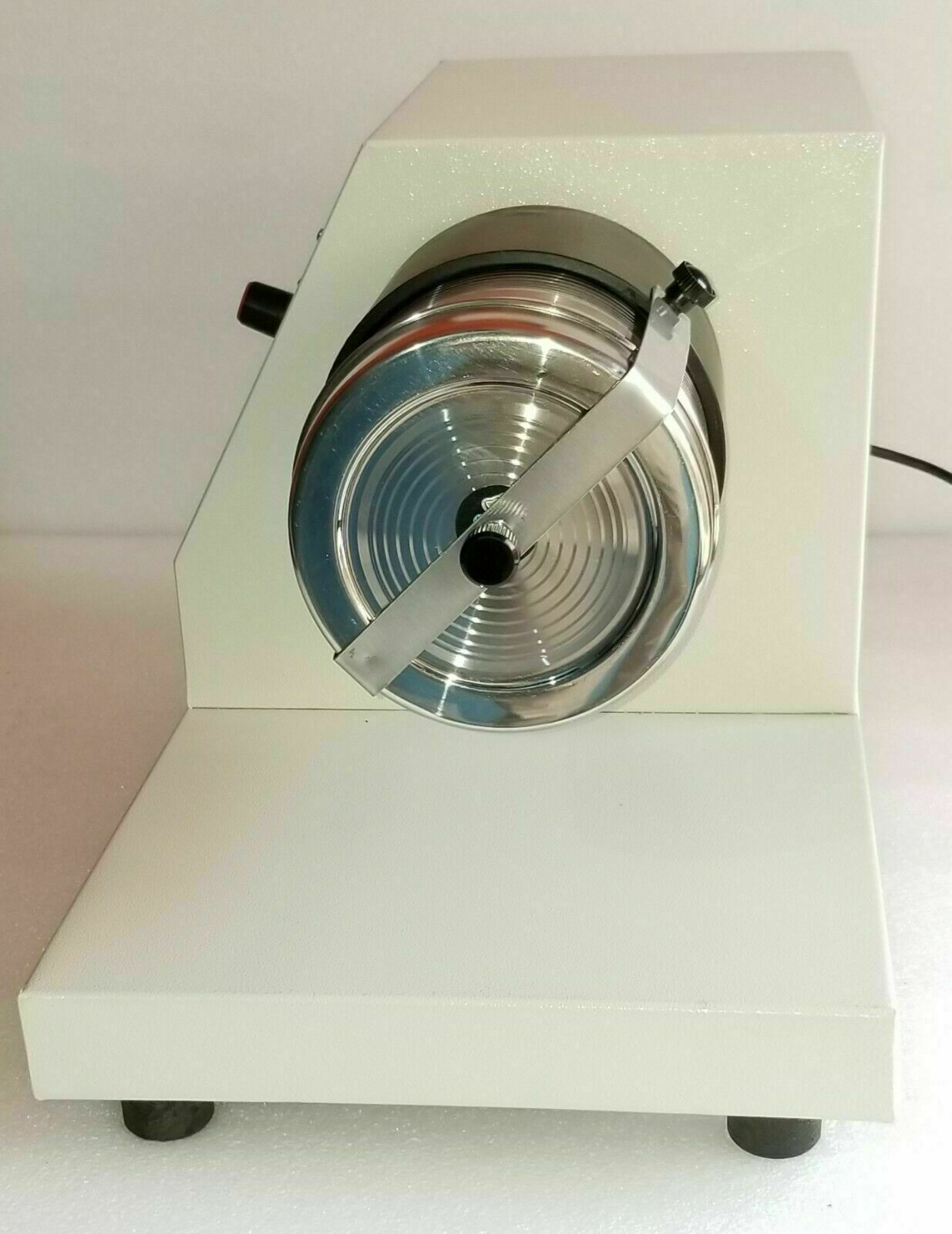

Laboratory Ball Mill 2kg Heavy Duty — 110-220V Motor Driven, SS 304 Container + Grinding Balls
Laboratory Ball Mill 2kg Heavy Duty — 110-220V Motor Driven, SS 304 Container + Grinding Balls
Couldn't load pickup availability
2 kg capacity heavy-duty motor-driven laboratory ball mill for sample preparation in mineral analysis, pharmaceutical formulation, ceramics, cement, coal, and metallurgical labs. Universal 110-220V AC voltage (works globally without adapter). Grinds hard and brittle materials down to fine powder (typically 10-100 μm) with minimum loss of moisture or volatile constituents. Includes SS 304 grinding container and stainless steel grinding balls. 80 RPM rotation speed, precision-balanced rotating parts for low-vibration + quiet operation. $1,499 direct — versus $3,500-$8,000 for Retsch PM100 / Fritsch Pulverisette 5 / SPEX 8000M laboratory ball mills.
Specifications
| Capacity | 2 kg batch (SS 304 grinding container) |
|---|---|
| Rotation speed | 80 RPM (fixed) |
| Motor | Single-phase heavy-duty AC motor, motorized drive |
| Power | Universal 110-220V AC (auto-detecting) — key differentiator |
| Grinding chamber | SS 304 cylindrical container (removable for cleaning) |
| Grinding media | Stainless steel balls, mixed sizes 6-25 mm — ~500g-1kg included |
| Final particle size | Typically 10-100 μm depending on starting material + grind time |
| Sample moisture loss | Minimum — sealed chamber preserves moisture + volatile constituents |
| Vibration + noise | Low — precision-balanced rotating parts |
| Body | Heavy-duty steel frame, powder-coated exterior |
| Warranty | 1-year parts + labor · Motor 3-year |
Applications
- Pharmaceutical formulation — API micronization, tablet formulation, herbal + Ayurvedic extract prep
- Mineral + geological analysis — rock + ore + sediment sample prep for XRF / ICP-MS / XRD
- Cement + concrete QC — fine grinding for compressive strength testing
- Ceramics + refractory — clay + alumina + zirconia raw material milling
- Coal analysis — calorific value + proximate analysis sample prep
- Metallurgical — slag + alloy compositional analysis prep
- Ayurvedic + Unani + TCM — Vati / Churna / Bhasma preparation
- Fertilizer + agrochemical QC — granular sample micronization
- Battery + electronics R&D — cathode + anode precursor blending
- University teaching — materials science + chemistry + geology labs
Buying for a lab or industrial QC program?
- Volume pricing on 3+ orders — pharma multi-lab builds, university teaching fleets
- Net-30 invoicing for verified pharma, academic, industrial accounts
- SAM.gov / GSA / VA compliant procurement
- Optional agate / zirconia / tungsten carbide containers + balls for trace analysis (contact for quote)
- Replacement balls ($120/kg), SS 304 containers ($300) stocked
- International DDP shipping — universal voltage means no power adapter overhead
FAQ
What's the difference vs the standard Ball Mill 2kg variant?
This variant runs on universal 110-220V AC (auto-detecting). The standard variant is 220V-only. Same capacity, same SS 304 chamber, same grinding media, same 80 RPM. Same price. Choose this if you're US-based (110V) or need voltage flexibility across international sites.
How does this compare to a Retsch PM100?
Retsch PM100 is a planetary ball mill (higher energy density, faster to nanoscale, 100-650 RPM). Ours is a rotational ball mill (simpler mechanism, 80 RPM fixed, longer grind times). For analytical prep + traditional Ayurvedic work, this is fully adequate. For nanoscale grinding, PM100 is required. Price differential: $1,499 vs $6,500-$8,500.
What particle size can I achieve?
Typical 10-100 μm final depending on starting material + grind time. Softer materials (organics) reach 10-30 μm in 30-60 min. Harder materials (rock, ceramic) take 2-4 hours to reach 50-100 μm.
What's the warranty?
1-year parts + labor. Motor 3-year. Grinding balls + container are consumables; replacement stocked in San Jose.
