Tablet Hardness Tester — Pfizer-Type Plier, ±0.2 kg Accuracy, 20 kg Max, USP <1217> Pharmaceutical QC
Tablet Hardness Tester — Pfizer-Type Plier, ±0.2 kg Accuracy, 20 kg Max, USP <1217> Pharmaceutical QC
Couldn't load pickup availability

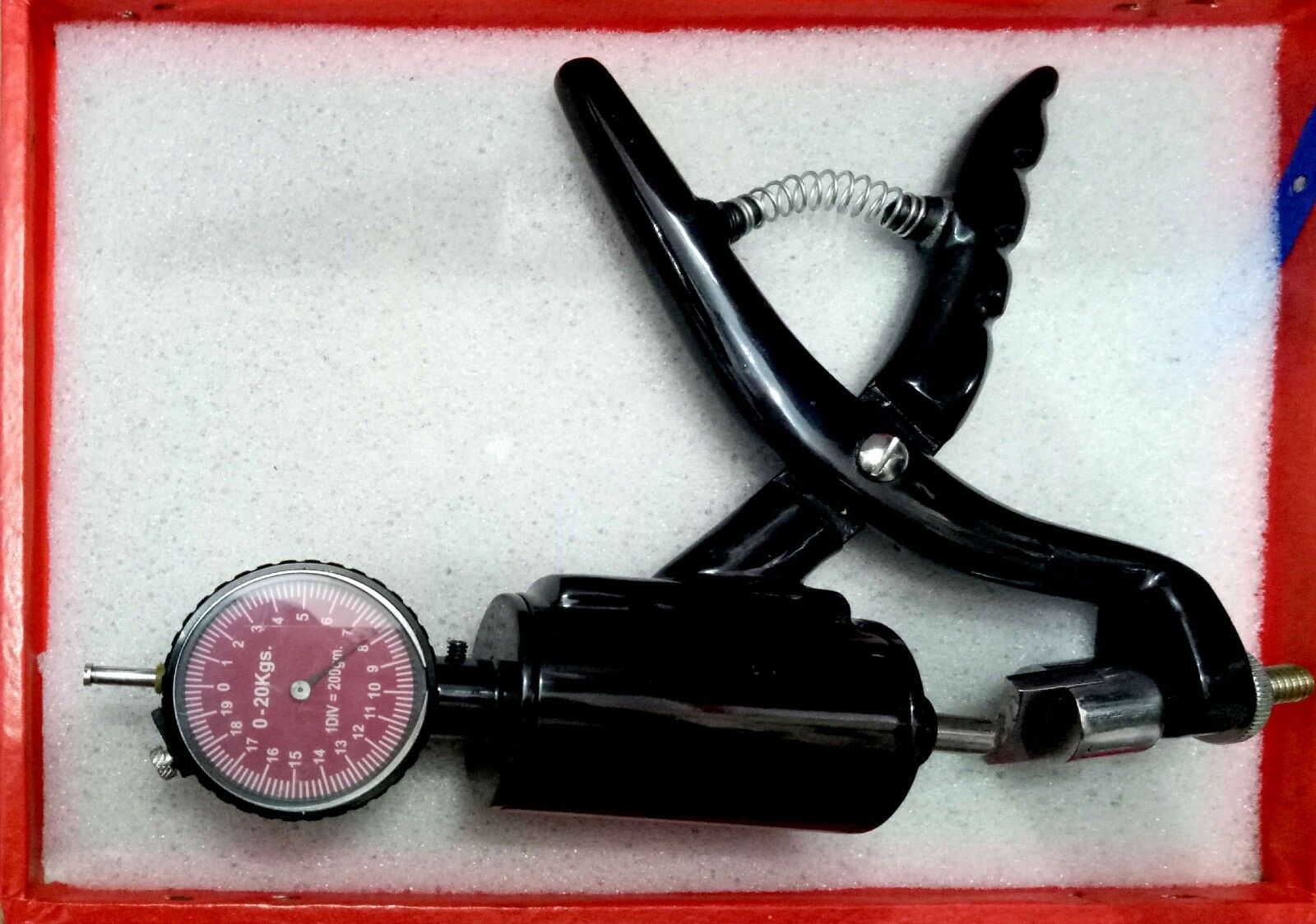

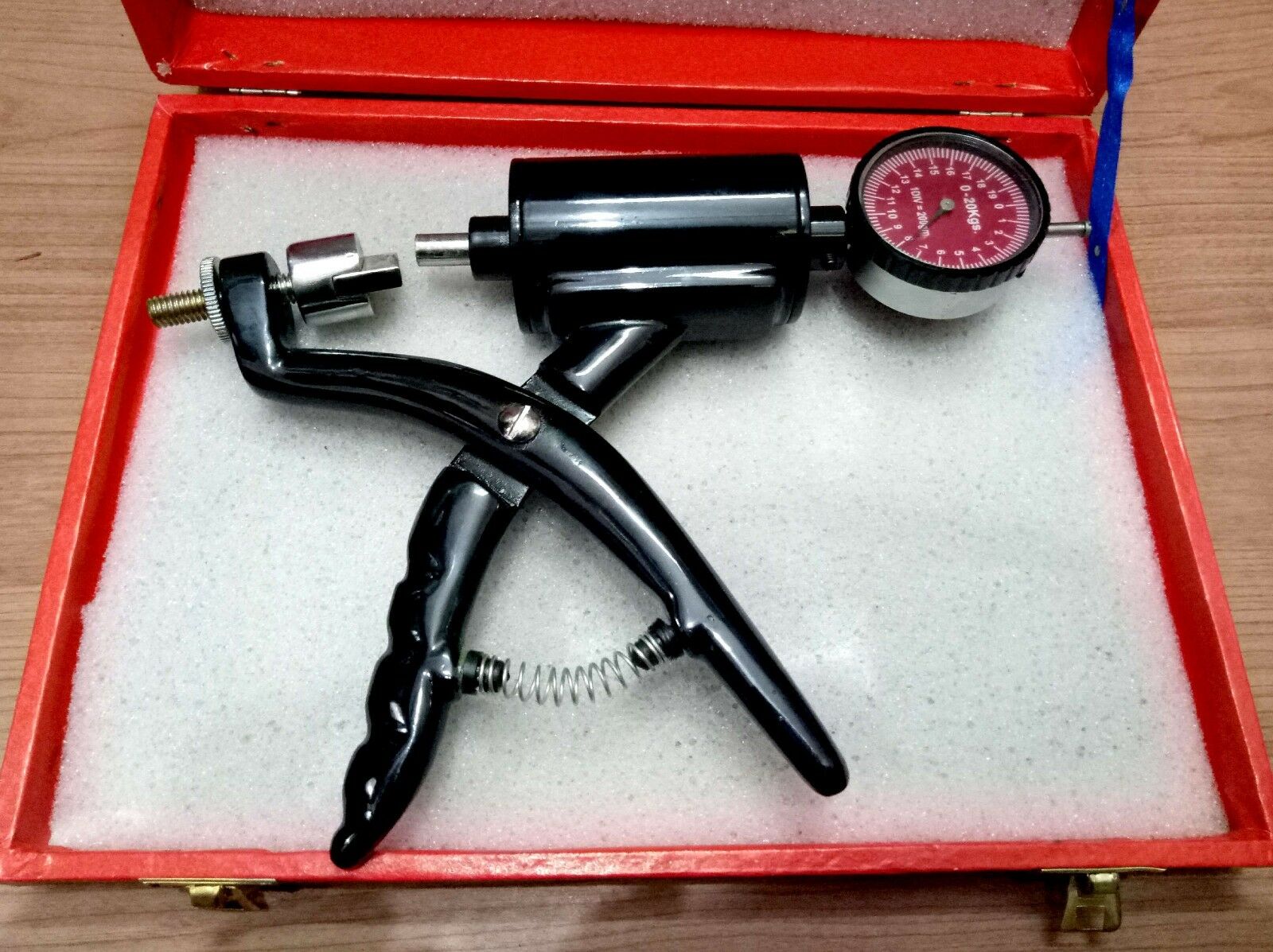

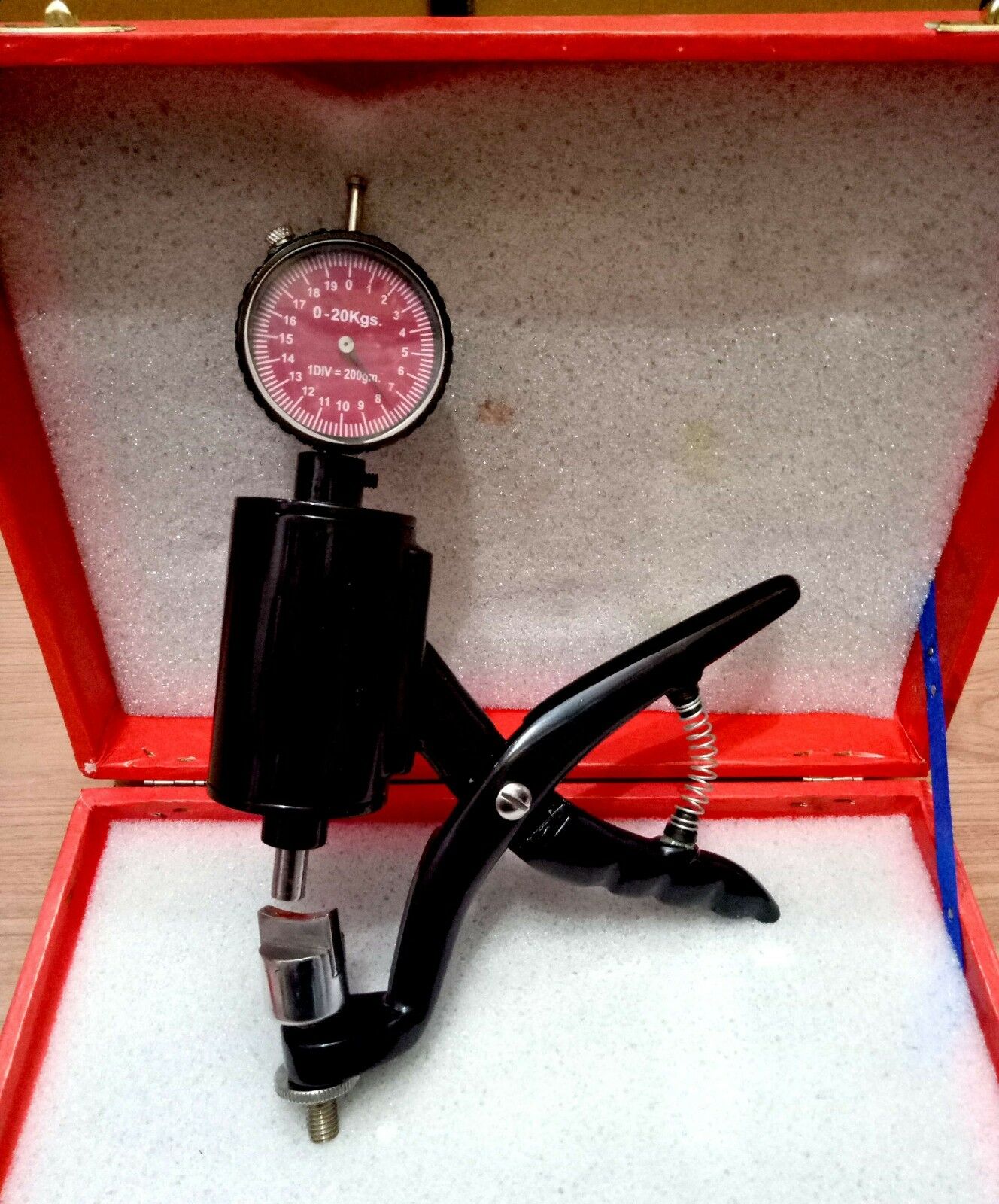

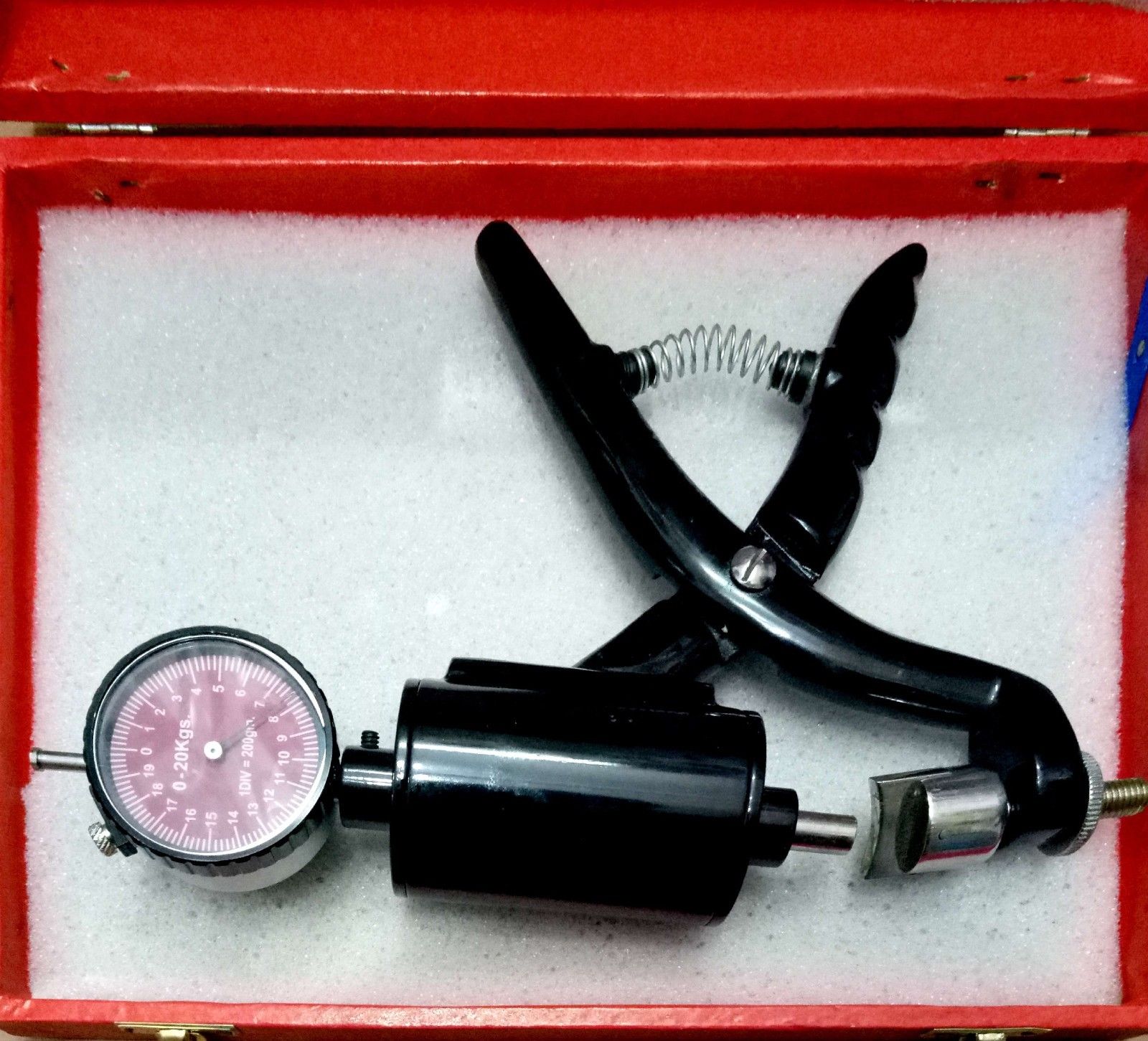

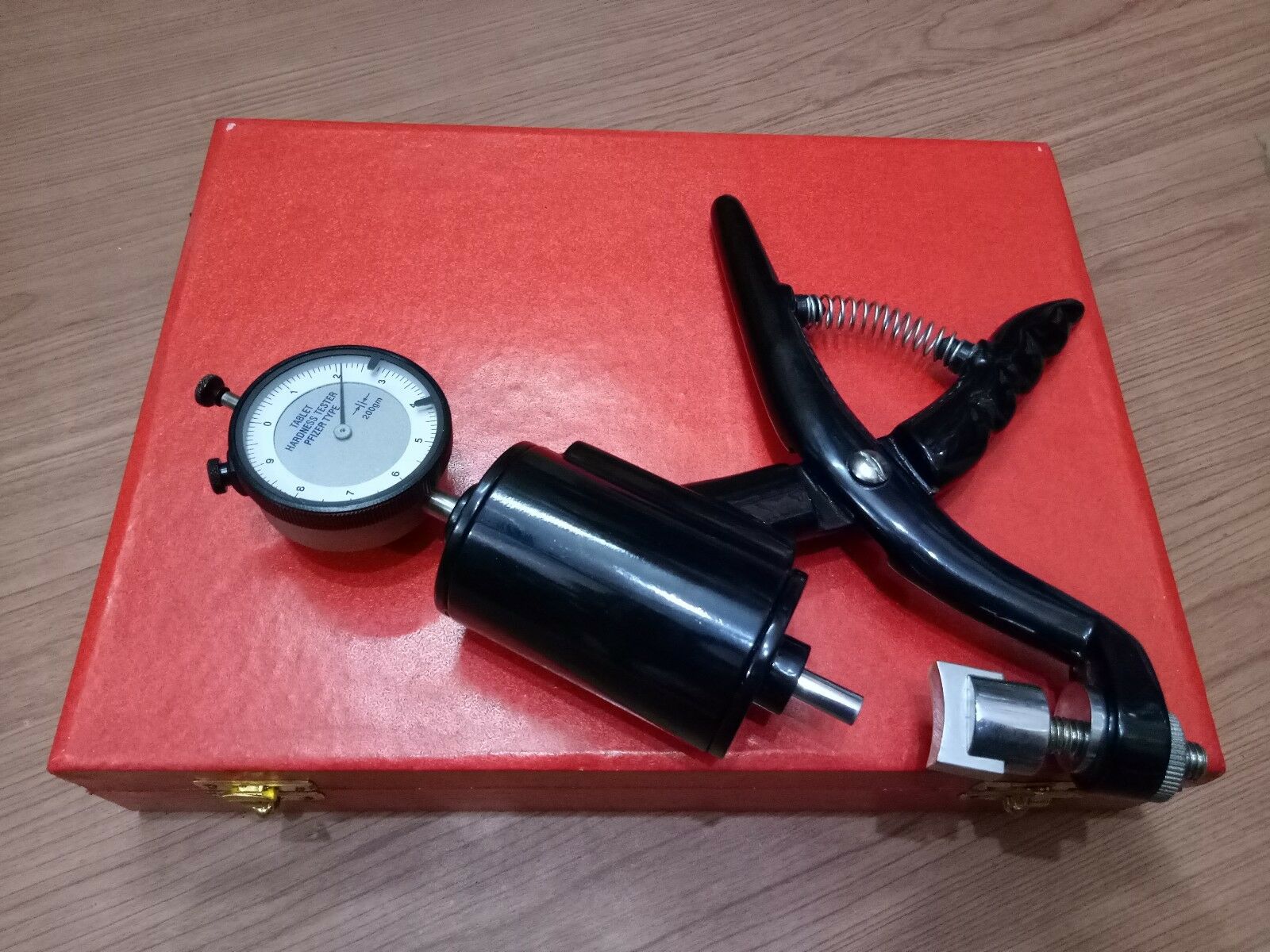

Handheld Pfizer-type tablet hardness tester for pharmaceutical quality control — direct dial-reading plier design generates breaking force in a single-grip squeeze. Fast, accurate, reproducible results without external power. Accuracy ±0.2 kg, least count 0.2 kg, safe testing force 20 kg, maximum tablet diameter 25 mm. USP <1217> Tablet Breaking Force method compliant for compendial pharmaceutical release testing + in-process QC. $225 direct — versus $1,500-$3,500 for Erweka TBH / Sotax HT-1 / Distek 3200 automated hardness testers.
Applications
- Pharmaceutical release testing — batch acceptance per USP <1217> Tablet Breaking Force + EP 2.9.8
- In-process pharma QC — during compression, granulation moisture optimization, coating layer verification
- Generic pharma manufacturing — cost-effective QC in Indian + Chinese + LATAM formulators
- Nutraceutical + supplement manufacturing — tablet integrity for shipping + shelf life
- Herbal + Ayurvedic tablet manufacturing — Vati / Guggulu / Rasa production QC
- Compounding pharmacy — verify hand-compressed tablet hardness before dispensing
- Pharmaceutical R&D — formulation development, tablet compression optimization
- Pharma school teaching — pharmaceutics + industrial pharmacy courses
Specifications
| Type | Pfizer-type handheld plier hardness tester (single-grip force generation) |
|---|---|
| Reading | Direct dial (analog, no batteries required) |
| Accuracy | ±0.2 kg |
| Least count | 0.2 kg (dial subdivision) |
| Safe testing force | 20 kg maximum |
| Maximum tablet diameter | 25 mm |
| Standard compliance | USP <1217> Tablet Breaking Force · EP 2.9.8 Resistance to Crushing of Tablets · IP tablet hardness testing |
| Warranty | 1-year against manufacturing defects |
Best for
- Pharmaceutical manufacturers (particularly generic + nutraceutical formulators)
- Contract pharma manufacturing QC
- Herbal + Ayurvedic + Unani tablet manufacturers
- Pharmaceutical compounding pharmacies
- Pharmacy + pharmaceutical sciences teaching programs
- Small-batch pharma R&D labs
- International pharma manufacturing via DDP (India, LATAM, MENA, SE Asia — huge generic pharma markets)
Buying for a pharma manufacturer or teaching program?
- Volume pricing on 5+ orders
- Net-30 invoicing for verified pharma / academic accounts
- SAM.gov compliant for federal + military pharma
- Calibration certificate + traceability documentation available
- International DDP — massive generic pharma manufacturing markets globally
FAQ
How does this compare to Erweka TBH / Sotax HT-1?
Erweka + Sotax are automated bench-top hardness testers with digital readouts, tablet feeders, and data logging for GMP-regulated pharma. This Pfizer-type handheld is manual operator-actuated — same USP <1217> compliance but slower for high-volume batch testing. Price differential: $225 vs $1,500-$3,500. For small-batch pharma + nutraceutical + compounding + teaching, handheld is fully adequate. For large pharma production QC with LIMS integration, invest in automated.
Is this USP <1217> compliant?
Yes — Pfizer-type handheld hardness testers are recognized in USP <1217> as one of the approved measurement methods (alongside motorized testers). Test data is directly comparable to compendial acceptance criteria for tablet breaking force.
How often do I calibrate?
Recommended annual calibration against certified reference weights. Send-in calibration service available with traceability certificate.
