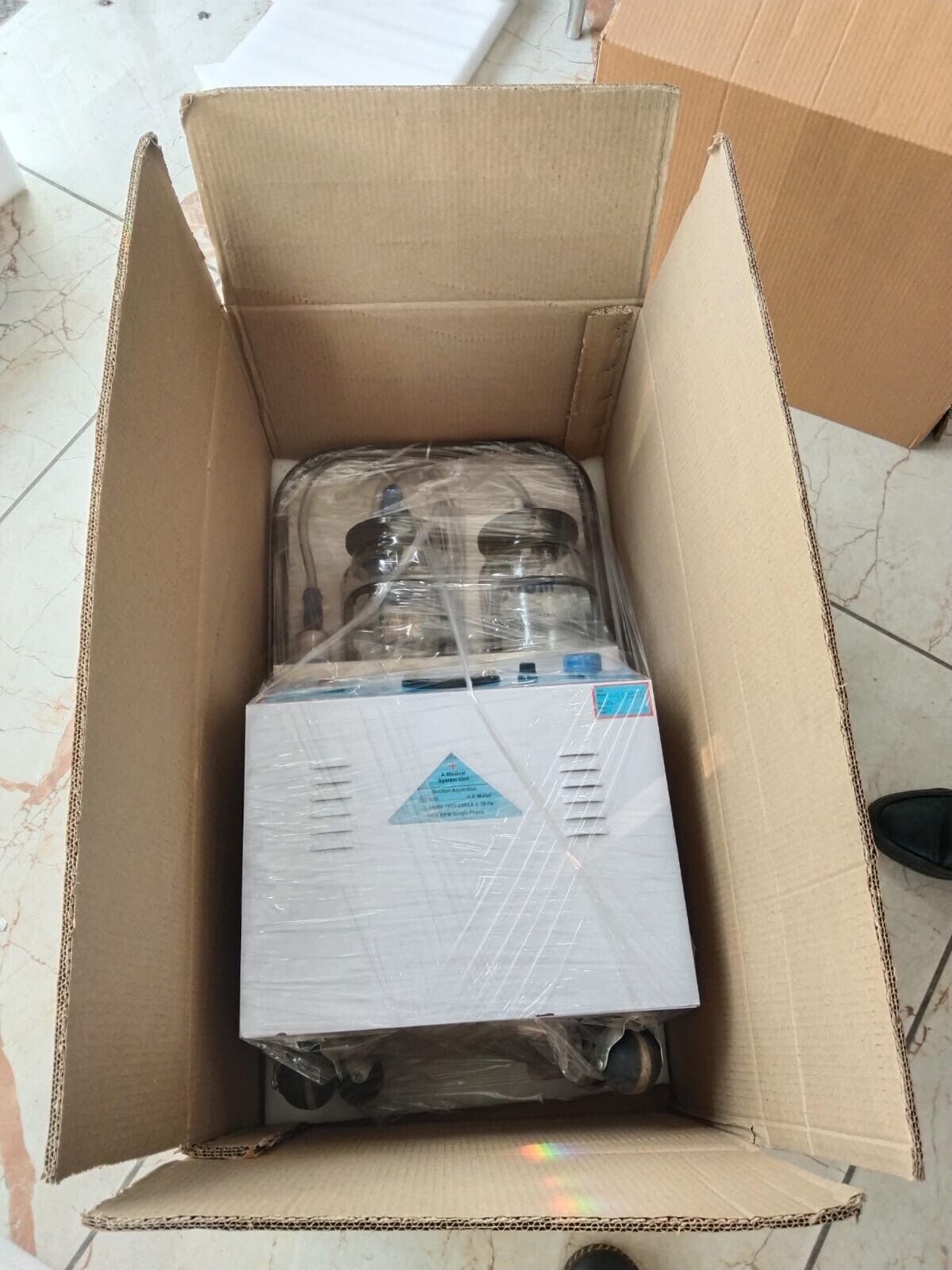

High Vacuum Liposuction Unit — 45-50 L/min, 1 HP, 750mmHg, Twin 2L Poly Jars, Powder Coated
High Vacuum Liposuction Unit — 45-50 L/min, 1 HP, 750mmHg, Twin 2L Poly Jars, Powder Coated
Couldn't load pickup availability
High-vacuum liposuction + surgical suction unit for tumescent + wet lipoplasty, OR high-vacuum suction, and clinical high-flow evacuation. 1 HP heavy-duty motorized rotary twin-pump delivers 45-50 L/min suction capacity at max 750 ±10 mmHg vacuum (regulable via vacuum control knob). Twin 2000cc unbreakable polycarbonate collection jars with float-type over-flow check valve protecting the pump from moisture, powder-coated body with stainless-steel top, absolutely noiseless operation, self-lubricating system, Bourdon-type 4" 0-760 mmHg vacuum gauge. 220V/110V single-phase. $2,499.99 direct — versus $8,500-$14,000 for Wells Johnson LipoAssist / Byron LipoAssist / MicroAire PAL suction units.
Specifications
| Suction capacity | 45 to 50 L/min (high-flow tumescent lipoplasty rated) |
|---|---|
| Max vacuum | 750 ±10 mmHg (regulable via vacuum control knob) |
| Vacuum gauge | Bourdon type 4", 0-760 mmHg calibration |
| Vacuum pump | Rotary twin pump (double-stage), 1 HP |
| Suction bottles | 2 × 2000cc unbreakable polycarbonate jars with float-type over-flow check valve (moisture protection for pump) |
| Tubing | Non-collapsible medical-grade tubing |
| Filter | Removable filter — protects pump from moisture + bacteria |
| Safety | Over-flow check valve + moisture filter + thermal cut-off on motor |
| Body | Powder-coated steel with SS 304 top surface |
| Noise | Silent operation (self-lubricating pump) |
| Overall dimensions | 380 × 390 × 825 mm (L × W × H) — trolley-cart form factor |
| Weight | ~34 kg |
| Power | AC 220V 50 Hz single-phase (110V/60Hz on request) |
| Regulatory | Manufactured under ISO 13485 quality systems |
| Warranty | 1-year parts + labor · 3-year rotary pump |
Clinical applications
- Tumescent liposuction — traditional Klein / Illouz technique (fat aspiration after tumescent infiltration)
- Wet lipoplasty — Fournier technique + variations
- Ultrasound-assisted liposuction (UAL) — as vacuum unit paired with UAL generator
- Power-assisted liposuction (PAL) — as vacuum unit paired with PAL handpiece
- Fat transfer + fat grafting — high-vacuum harvest, low-vacuum reinjection
- Gynecomastia correction — chest liposuction in male patients
- Buffalo hump reduction — dorsocervical fat pad removal
- OR high-vacuum suction — general surgical suction (blood + irrigation evacuation)
- Cellulite treatment — subcision + fat redistribution procedures
- Reconstructive contouring — post-weight-loss + post-bariatric body contouring
Best for
- Cosmetic + plastic surgery practices (private + hospital-affiliated)
- Ambulatory surgery centers specializing in aesthetic procedures
- Hospital OR general surgery + reconstructive surgery
- Cosmetic tourism destinations — LATAM (Colombia, Mexico, Brazil), GCC, SE Asia, India
- Residency + fellowship training programs — plastic + cosmetic surgery
- Community hospitals expanding cosmetic + reconstructive scope
- Veterinary surgical facilities — animal fat removal + wound debridement
- Academic plastic surgery + wound care programs
Buying for a cosmetic + plastic surgery practice or ASC?
- Volume pricing on 3+ orders — multi-OR ASC build-outs, plastic surgery chain rollouts
- Net-30 invoicing for verified practices, ASCs, hospitals
- Practice + equipment financing — cosmetic surgery equipment lenders (24-84 month terms)
- International DDP shipping — LATAM (Colombia, Brazil, Mexico), GCC, SE Asia, India — largest cosmetic tourism markets globally
- Replacement polycarbonate jars ($120 each), tubing sets ($40), filters ($20) stocked in San Jose
- Compatible cannula sets + surgical instrument packages available (separate quote)
- Extended 3-year service contracts for high-volume ASCs
FAQ
How does this compare to Wells Johnson LipoAssist / Byron LipoAssist?
Feature parity on clinical essentials — 45-50 L/min flow, 750 mmHg max vacuum, twin collection jars, over-flow protection, silent operation. Wells Johnson + Byron units have more polished operator interfaces, integrated foot pedal, and premium build quality. Price differential: $2,499 vs $8,500-$14,000. For cosmetic tourism markets in LATAM / GCC / SE Asia where budget is tight, the SciMed unit delivers full clinical function at ~25% of Wells Johnson pricing.
Can I use this with power-assisted (PAL) or ultrasound-assisted (UAL) systems?
Yes — as the vacuum source. PAL + UAL systems typically consist of a specialized handpiece + generator + this vacuum unit. Handpiece + generator sold separately (contact us for compatible options).
Is this suitable for fat grafting?
Yes for the harvest phase (high vacuum). For reinjection, you need low-vacuum manual technique (10-25 mL syringe with locked plunger). This unit is not designed for the reinjection phase.
What voltage should I order?
US practices: specify 110V/60Hz. International: 220V/50Hz. For mobile / multi-country cosmetic surgery practices, universal 100-240V configuration available (+$300).
What's the pump service life?
Rotary twin pump: typically 10,000-15,000 hours (5-8 years continuous ASC use). Self-lubricating design means no maintenance required for typical service life. Pump replacement: $600.
What ships in the box?
Suction unit + twin 2L polycarbonate jars + connecting tubing + moisture filter + vacuum tubing + user manual. Cannulas + handpieces sold separately (contact us).
How is this shipped internationally?
US: LTL freight (~34 kg boxed). International: ocean freight DDP for 3+ units, DHL Express DDP for single-unit urgent. Ships to LATAM cosmetic tourism markets (Colombia, Mexico, Brazil), GCC, India, SE Asia, MENA — largest global cosmetic surgery markets.
