Cryogun in Dermatology: How Liquid Nitrogen Spray is Transforming Cryosurgery

Cryosurgery is the deliberate use of extreme cold to destroy unwanted skin tissue. Over decades, dermatologists have relied on liquid nitrogen spray via cryoguns to treat things like warts, precancerous lesions, and some superficial skin cancers. What makes cryoguns so powerful is their precision, speed, and relatively low cost. For medical students and professionals in the USA, understanding how these tools work, what to watch out for, and how regulation shapes their use is crucial.

What Is Cryosurgery?

Cryosurgery is a medical procedure that uses extreme cold, typically from liquid nitrogen, to destroy abnormal skin tissues like skin tumors, skin tags, and malignant basal cell carcinoma. It’s widely used in dermatology because it’s quick, effective, and requires minimal recovery time. The process freezes targeted cells, causing them to die off while sparing healthy tissue.

Cellular Mechanisms

The therapeutic effects of liquid nitrogen spray operate through two primary mechanisms. The first mechanism involves inducing tissue ischemia by damaging blood vessels and capillaries within the target area, leading to ischemic necrosis of the tissue.

The second mechanism damages cells through the formation of ice crystals, which physically disrupt cellular membranes and organelles (see NIH overview of Cryotherapy in Dermatology).

Tissue Response and Healing

Following cryotherapy application, the tissue undergoes a complex healing process. The thawing process induces osmolarity changes, which also result in tissue damage, creating additional therapeutic effects beyond the initial freezing injury.

Cryoablation consists of direct freezing effects on skin constituents, thrombosis formation in microcirculation, and subsequent immunological responses. The inflammatory response triggered by cryotherapy stimulates the body's natural healing processes, leading to controlled tissue regeneration and re-epithelialization.

What is a Cryogun?

A cryogun is a specialized medical device designed to deliver controlled applications of liquid nitrogen spray to targeted tissue areas. Unlike traditional cryotherapy methods that relied on cotton-tipped applicators or open spray techniques, modern cryoguns provide precise temperature control and directed application through various interchangeable spray tips and probes.

The fundamental difference between cryoguns and conventional cryosurgery equipment lies in their delivery mechanism. Traditional liquid nitrogen sprayers operate through a trigger system that allows pressurized liquid nitrogen to be sprayed from the nozzle, while advanced cryogun systems incorporate pressure regulation, flow control, and specialized attachment systems for enhanced precision.

How Liquid Nitrogen Spray Works

Liquid nitrogen achieves its therapeutic effect by rapidly cooling targeted tissue to sub-zero temperatures. Liquid nitrogen can reduce skin temperature to -196°C after just 5 seconds of application, with recovery to 0°C occurring after approximately 70 seconds.

The cryogun mechanism relies on the rapid expansion of liquid nitrogen as it transitions from liquid to gas state, creating an intense cooling effect that can be precisely controlled through trigger mechanisms and specialized delivery tips. This controlled application allows practitioners to target specific lesions while minimizing damage to surrounding healthy tissue.

Step-by-Step Application of Liquid Nitrogen Spray

Using a cryo gun medical device is straightforward but requires training. Here’s how it works:

• Fill the Cryogun: Load the device with liquid nitrogen from a pressurized canister, ensuring proper insulation to prevent leaks.
• Select the Nozzle: Choose a spray tip or probe based on lesion size (e.g., 1mm for small warts).
• Apply the Spray: Aim the liquid nitrogen sprayer at the lesion, delivering short bursts (5-10 seconds) to freeze it.
• Monitor Thawing: Allow the frozen area to thaw naturally, repeating if needed for deeper lesions.
• Post-Treatment Care: Advise patients to keep the area clean to avoid infection.

Safety tip: Always use protective eyewear and gloves to handle liquid nitrogen safely.

Clinical Indications & Case Study of Cryoguns

• Benign lesions: Cryogun technology has proven highly effective for treating various benign skin conditions. Benign lesions that can be treated with cryosurgery include seborrheic keratosis, verruca, skin tags, molluscum contagiosum, solar lentigo, and hypertrophic/keloid scars.
• Premalignant and Malignant Lesions: Cryogun therapy has demonstrated particular effectiveness in treating actinic keratoses, which represent a significant clinical concern due to their potential for malignant transformation. The controlled application possible with modern cryogun systems allows for the destruction of dysplastic tissue while preserving surrounding healthy skin.
• Selected superficial malignant lesions: small basal cell carcinoma (BCC), squamous cell carcinoma in situ (if lesion is well defined, biopsy confirmed).

Effectiveness & Outcomes

• A study published on Taylor & Francis in aged patients found that cryotherapy offered a cure rate around 95% for Basal Cell Carcinoma (BCC), with significant clinical improvement by day 25 post-treatment.

Key Benefits of Using a Cryogun for Dermatology Cryosurgery

The cryogun’s precision and efficiency make it a top choice for US dermatologists. Here are its main advantages:

• Minimally Invasive: No cutting or stitches, reducing patient discomfort.
• Cost-Effective: Procedures are quick, often under 5 minutes, lowering clinic costs.
• Low Scarring: Freezing causes less scarring than surgical excision.
• Fast Recovery: Most patients resume normal activities the same day.

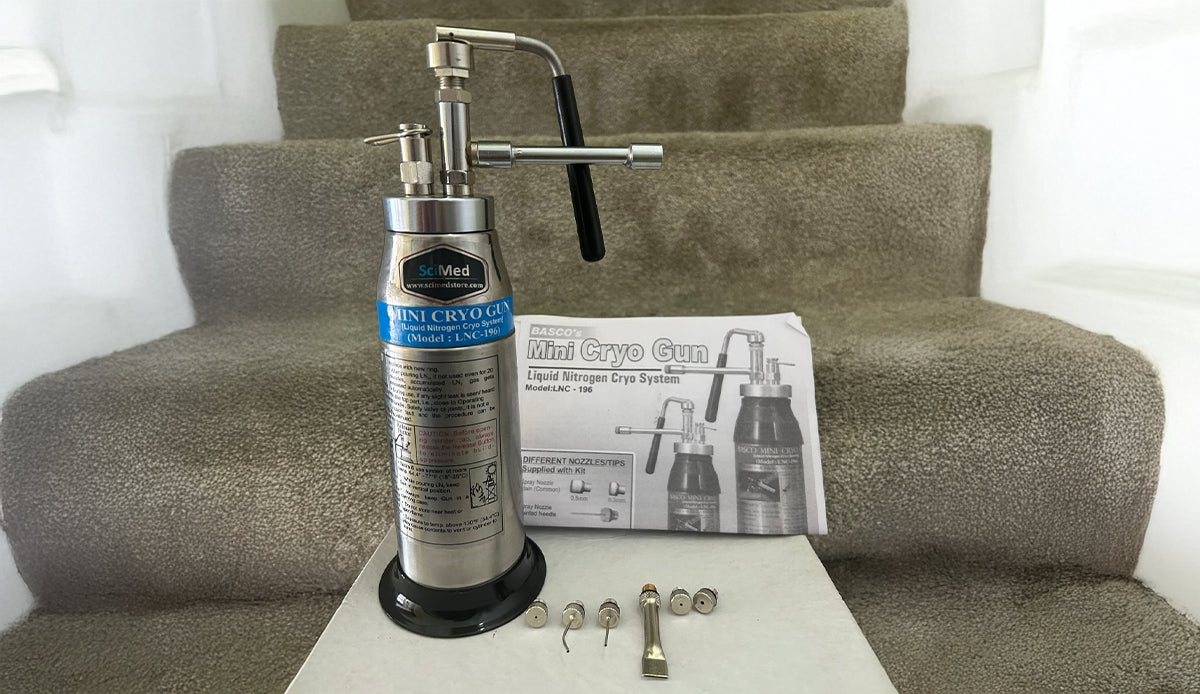

Finding the Right Tool: The SciMed Mini Cryo Gun

For US medical professionals seeking reliable cryosurgery equipment, SciMed offers high-quality cryoguns, like the SciMed Mini Cryogun with interchangeable freeze heads for precision, which is ISO 13485:2016 Certified.

Conclusion

The cryogun has transformed dermatology cryosurgery by offering a precise, efficient, and patient-friendly way to treat skin conditions. From warts to precancerous lesions, liquid nitrogen spray delivers results with minimal downtime. Medical students and professionals can confidently adopt this technology to improve patient outcomes in US clinics.

FAQs

1. Is cryosurgery with a cryogun painful?

Patients may feel some discomfort, often described as a cold or stinging sensation, during the procedure. The pain is temporary and usually well-tolerated. In most cases, a local anesthetic is not needed, especially for small lesions.

2. What are the common side effects of cryosurgery?

Common side effects include redness, swelling, and blistering. A change in skin color, either lighter or darker, can also occur, though it is often temporary. These are generally part of the healing process and tend to resolve over time.

3. Can you buy a liquid nitrogen spray for home use?

Liquid nitrogen sprayers are medical devices restricted to professional use due to safety risks like frostbite. Over-the-counter freezing kits exist but are less potent and not recommended for complex conditions.

4. How do you decide freeze time and margins for different lesions?

It depends on lesion size, thickness, and histological type. For benign lesions, shorter freezes (5-10 s) may work; for actinic keratosis or small malignant lesions, longer freezes (often ≥30 seconds per cycle) with one or more freeze-thaw cycles and adequate margin (mm level) are used. Proper visualization of the ice ball helps determine an adequate margin.

5. How long does a typical cryosurgery procedure take?

Cryosurgery is a quick procedure that can often be done in a dermatologist's office. The appointment is typically brief, usually lasting between 15 to 30 minutes, depending on the number and size of the lesions being treated.
